Removal And Installation: Notes

WARNING:
  • When removing and installing the shift lock cable unit and key interlock cable, be careful not to hit the SRS-ECU.
  • When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to ON-VEHICLE SERVICE .)

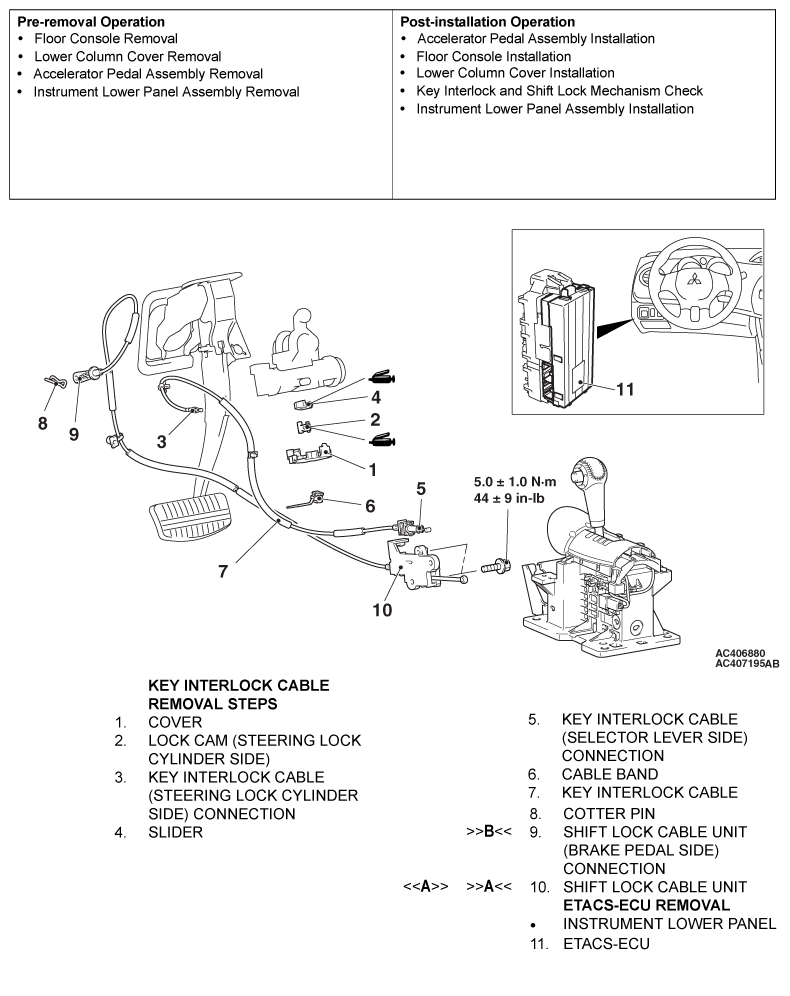

    Fig 1: Removal/Installation Of A/T Key Interlock And Shift Lock Mechanisms With Torque Specifications
    G06685571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
