A/T Control Component Layout

SYMBOL REFERENCE

NAME	SYMBOL	NAME	SYMBOL
A/T control relay	B	Powertrain control module (PCM)	E
A/T control solenoid valves	D	Stoplight switch	F
Data link connector	G	Shift switch assembly	H
Input shaft speed sensor	A	Transmission fluid temperature sensor	D
Output shaft speed sensor	A	Transmission range switch	C

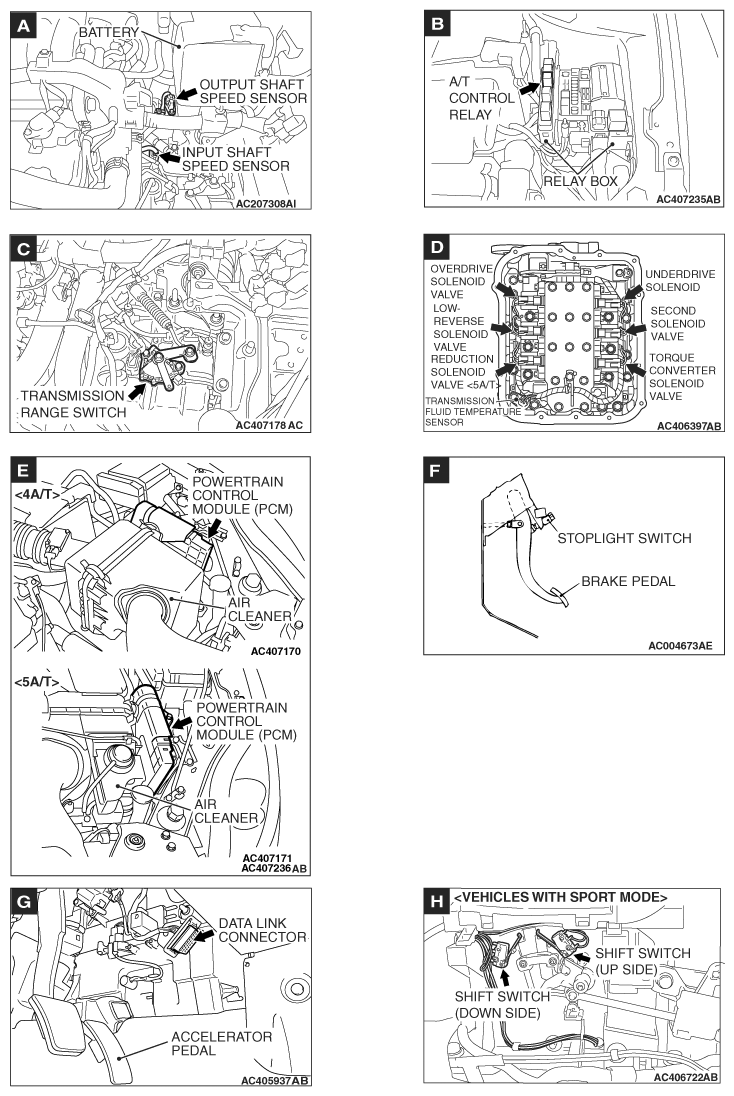

Fig 1: A/T Control Component Locations (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

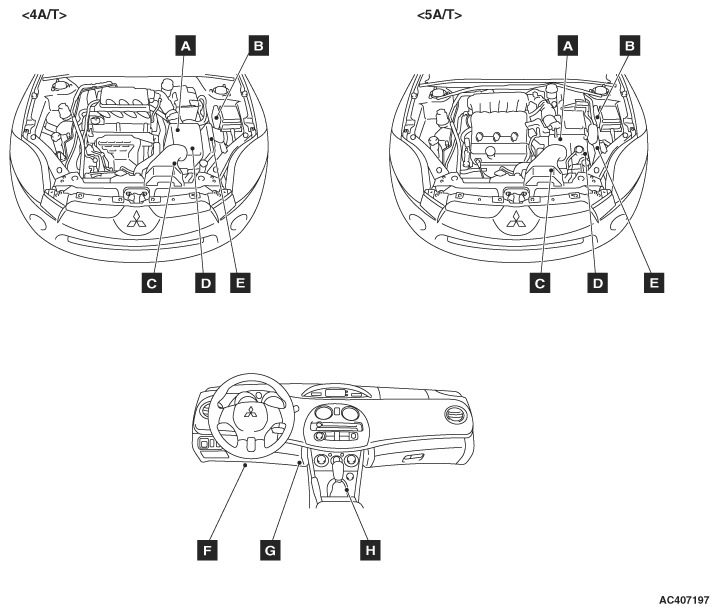

Fig 2: A/T Control Component Locations (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
