A/T Control Relay Check

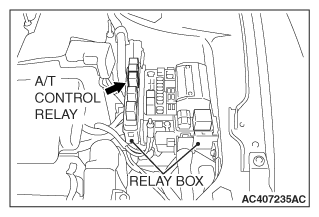

- Remove the A/T control relay.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Use jumper wires to connect A/T control relay terminal 3 to the negative battery terminal and terminal 2 to the positive battery terminal.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Check for continuity between A/T control relay terminals 1 and 4 when the jumper wires are connected to and disconnected from the battery.
CONTINUITY SPECIFICATION
| JUMPER WIRE |
CONTINUITY BETWEEN TERMINALS NO. 1 AND NO. 4 |
| Connected |
Continuity |
| Disconnected |
No continuity |
- If there is any problem with the A/T control relay, replace it.
