Transmission Range Switch Check

TRANSMISSION RANGE SWITCH REFERENCE

TRANSMISSION RANGE TERMINAL CONNECTION OF TESTER SPECIFIED CONDITION
P 3 - 8, 9 - 10 Less than 2 ohms.
R 7 - 8
N 4 - 8, 9 - 10
D 1 - 8

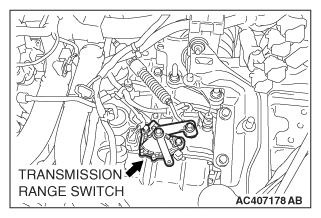

Fig 1: Locating Transmission Range Switch
G06685134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

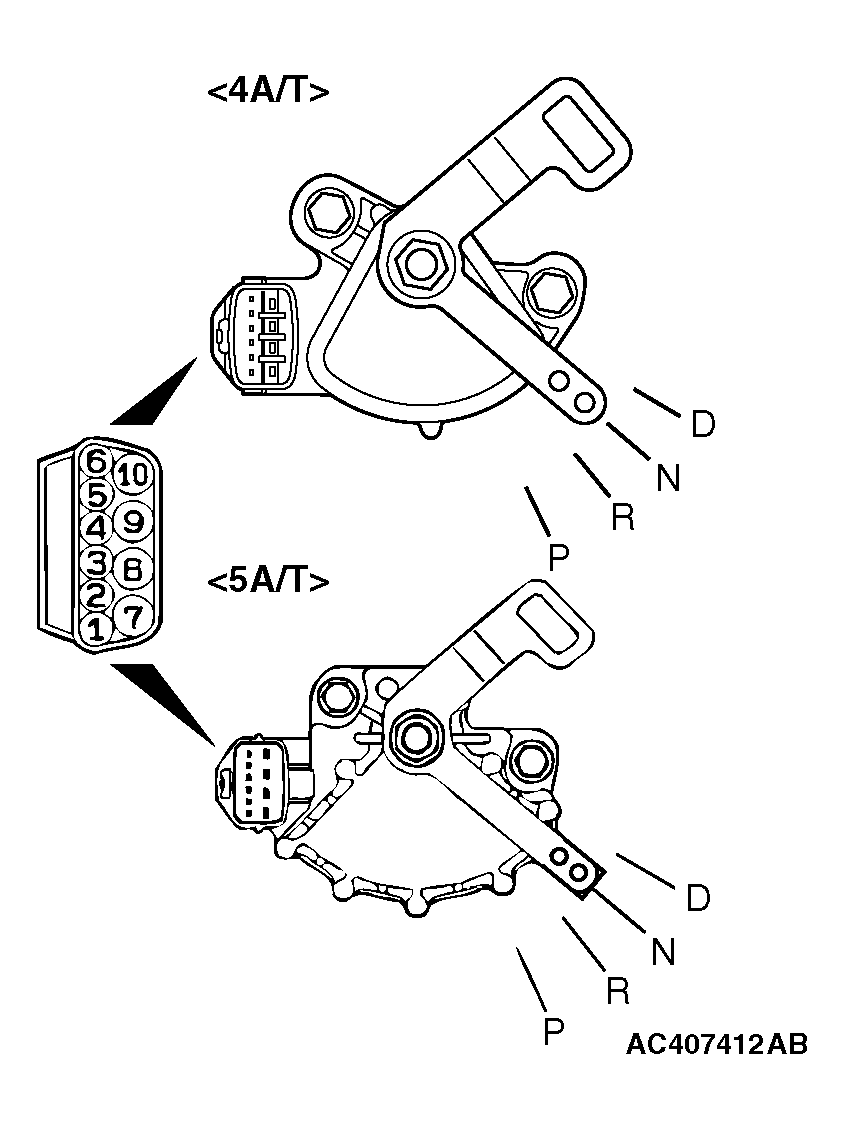

Fig 2: Transmission Range Switch Position
G04230749Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.


Refer to TRANSMISSION RANGE SWITCH CHECK  .
