Removal And Installation <3.8L Engine>: Notes

CAUTION: When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).

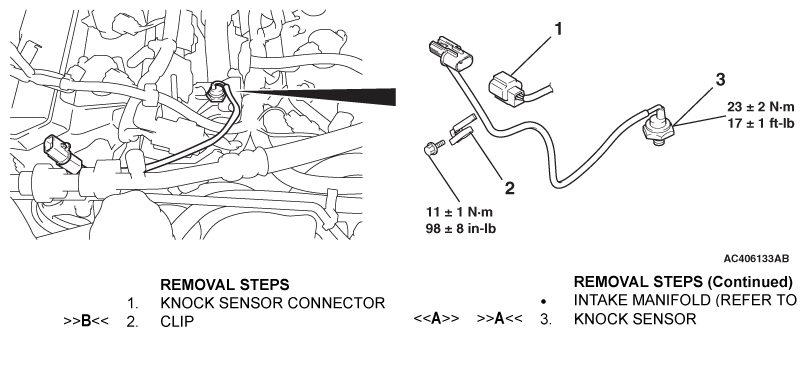

Fig 1: Removal/Installation Of Knock Sensor With Torque Specifications (3.8L Engine)
G06692032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
