Special Tools

SPECIAL TOOLS SPECIFICATION

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION

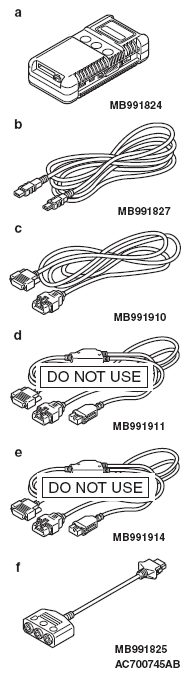

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter	MB991824-KIT NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.	SWS communication line check (ECU check and service data) CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991997 ASC check harness	-	TCL/ASC-ECU terminal voltage measurement
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Test harness LED harness LED harness adaptor Probe	General service tool (jumper)	Making voltage and resistance measurements during troubleshooting Connect pin contact pressure inspection Power circuit inspection Power circuit inspection Commercial tester connection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992006 Extra fine probe	-	Making voltage and resistance measurement during troubleshooting
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991348 The harness set	-	For checking of G and yaw rate sensor input voltage measurement
