Removal And Installation: Notes

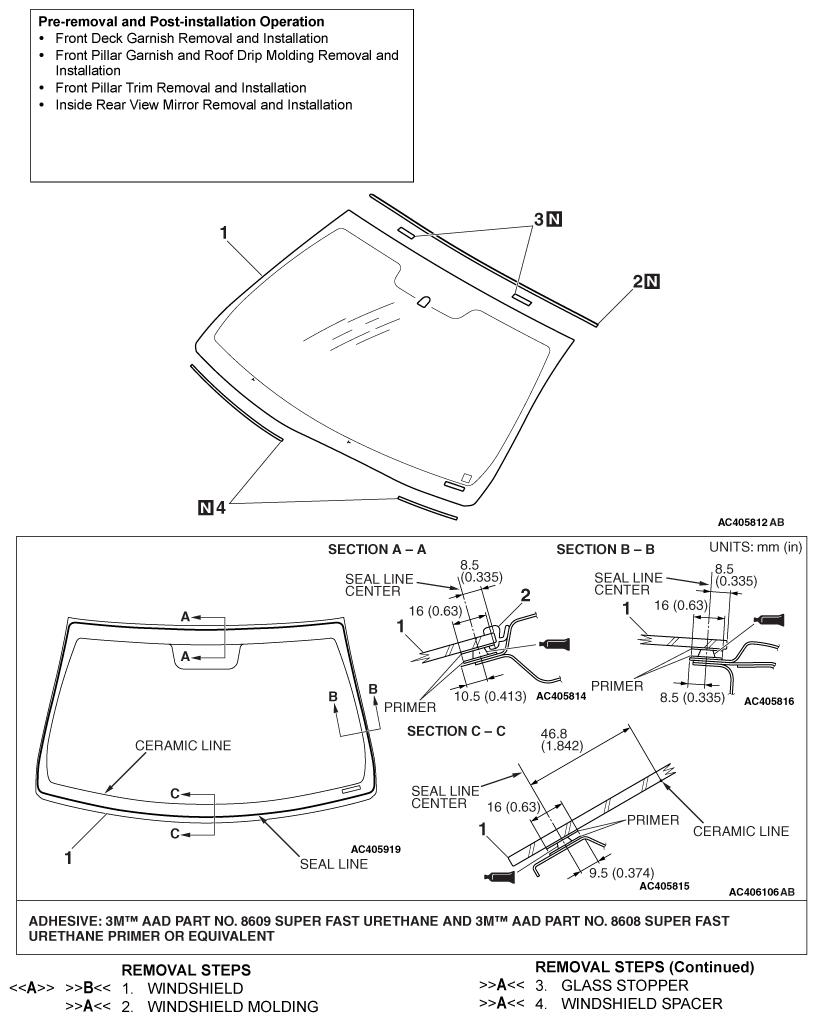

Fig 1: Removing/Installing Windshield Components
G06692344Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
