System Configuration Diagram

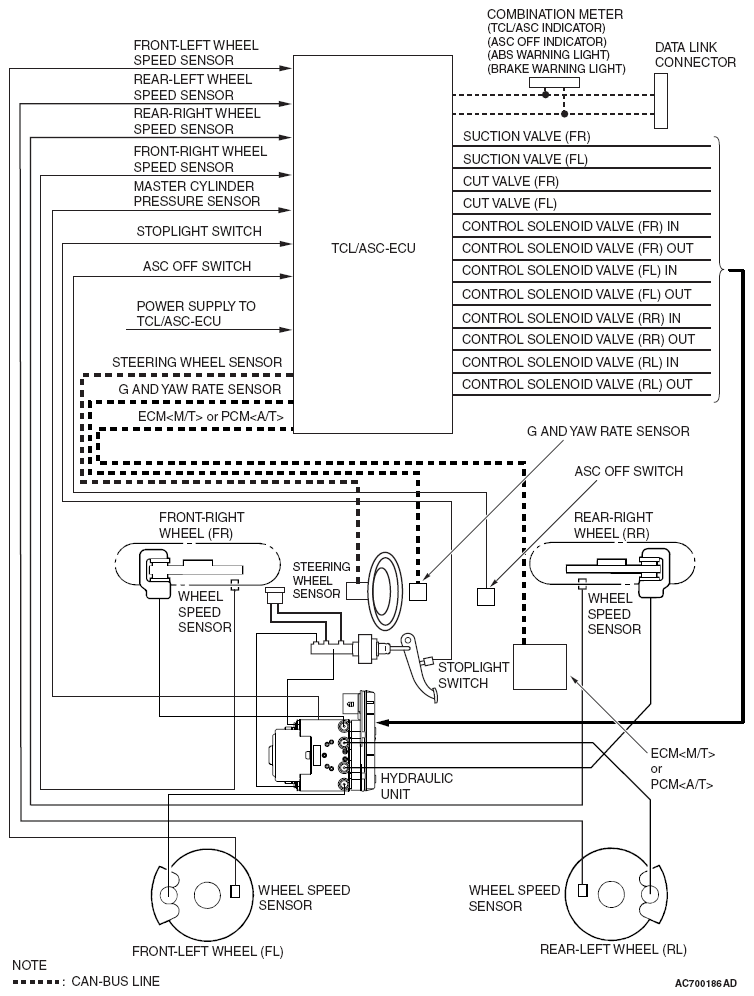

Fig 1: Traction Control/Active Stability Control System Configuration Diagram
G06689639Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
