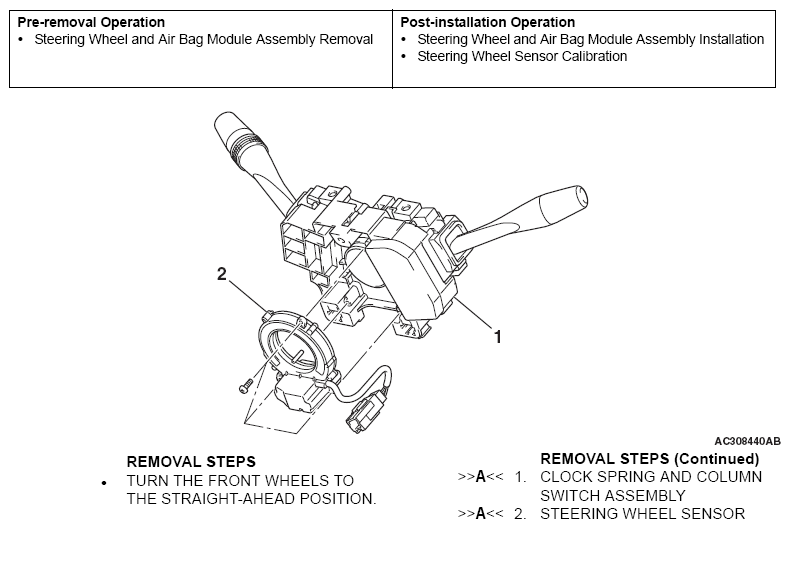

Removal And Installation: Notes
WARNING:
Before removing the steering wheel and air bag module assembly, refer to
SERVICE PRECAUTIONS
and AIR BAG MODULE AND CLOCK SPRING
.
CAUTION:
- When centering the clock spring, always remove the clock spring from the column switch in advance. Otherwise, the sensor may be damaged.
- If the clock spring is not correctly aligned, the steering wheel may not be turned or the cable inside the clock spring may be broken, causing the SRS to be inoperative.
- Always carry out steering wheel sensor calibration after the steering wheel sensor has been installed (Refer to STEERING WHEEL SENSOR CALIBRATION . This is necessary because the TCL/ASC-ECU should update the steering neutral point.
