Resistance And Continuity Between Harness-Side Connector Terminals

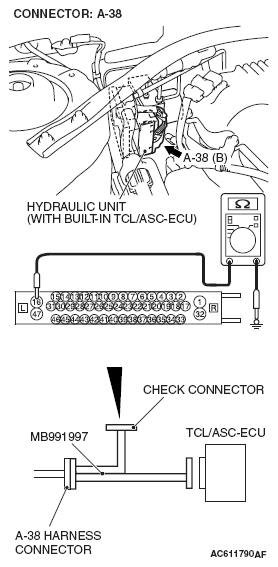

- Disconnect the connector A-38, and connect special tool MB991997 to the wiring harness-side connector.NOTE: Do not connect special tool MB991997 to the TCL/ASC-ECU.
- Measure the resistance and continuity between the terminals indicated in the table below.
TERMINAL RESISTANCE REFERENCE
| CONNECTOR TERMINAL NO. | SIGNAL | NORMAL CONDITION |
|---|---|---|
| 45 - 46 | Front-left wheel speed sensor | 1.24 - 1.64 kΩ |
| 33 - 34 | Front-right wheel speed sensor | 1.24 - 1.64 kΩ |
| 36 - 37 | Rear-left wheel speed sensor | 1.24 - 1.64 kΩ |
| 42 - 43 | Rear-right wheel speed sensor | 1.24 - 1.64 kΩ |
| 16 - body ground | Ground | Continuity exists (2 Ω or less) |
| 47 - body ground | Ground | Continuity exists (2 Ω or less) |
