Disassembly And Assembly: Notes

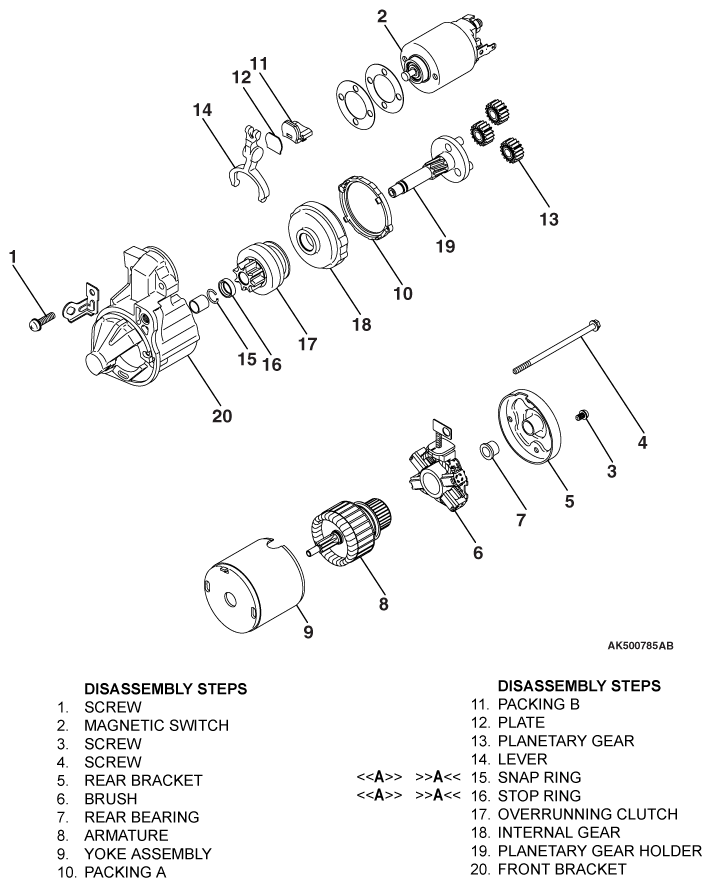

Fig 1: Disassembling And Assembling Starter Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
