Removal And Installation <3.8L Engine>: Notes

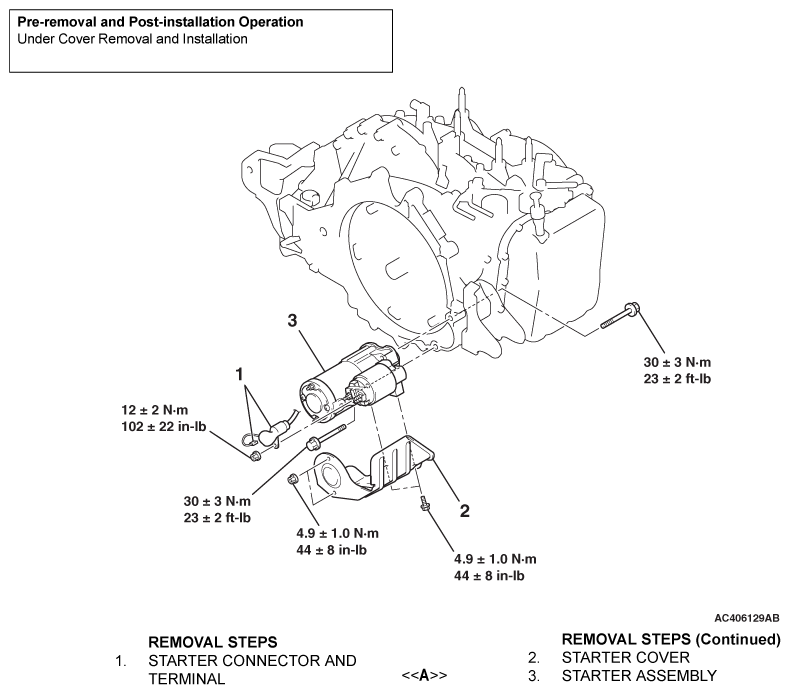

Fig 1: Removing/Installing Starter Motor Assembly With Torque Specifications (3.8L Engine) - A/T
G06691987Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
