Removal And Installation

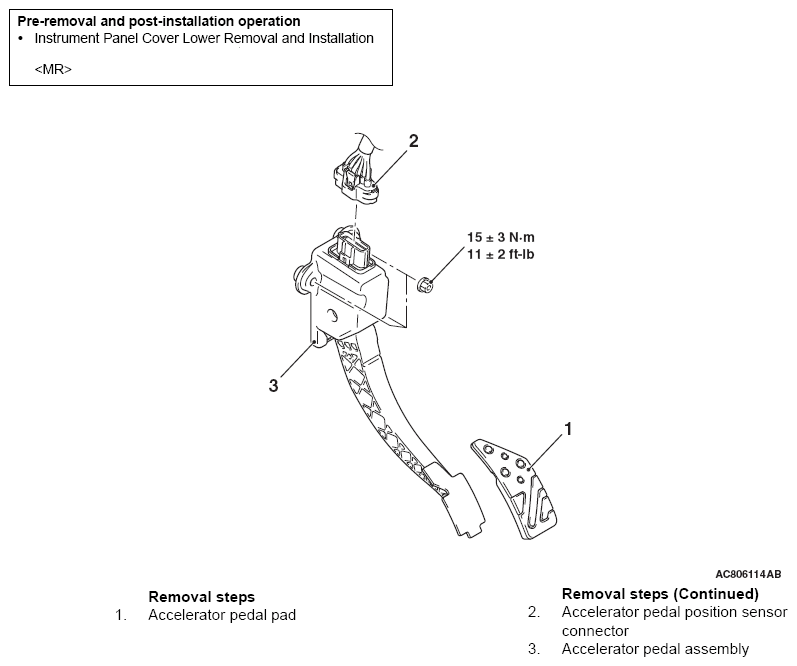

Fig 1: Accelerator Pedal Components With Torque Specifications
G06676774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
