Special Tool

SPECIAL TOOL REFERENCE

Tool	Tool number and name	Supersession	Application

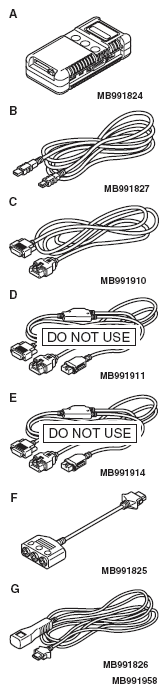

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 Scan tool (M.U.T.-III sub assembly) Vehicle communication interface (V. C. I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: g: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. Checking diagnostic trouble code (DTC)

Tool

Tool number and name

Supersession

Application

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

MB991958

MB991824
MB991827
MB991910
MB991911
MB991914
MB991825
MB991826

Scan tool (M.U.T.-III sub assembly)

Vehicle communication interface (V. C. I.)
M.U.T.-III USB cable
M.U.T.-III main harness A (Vehicles with CAN communication system)
M.U.T.-III main harness B (Vehicles without CAN communication system)
M.U.T.-III main harness C (for Chrysler models only)
M.U.T.-III measurement adapter
M.U.T.-III trigger harness

MB991824-KIT

NOTE: g: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.

CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.

Checking diagnostic trouble code (DTC)
