Removal And Installation

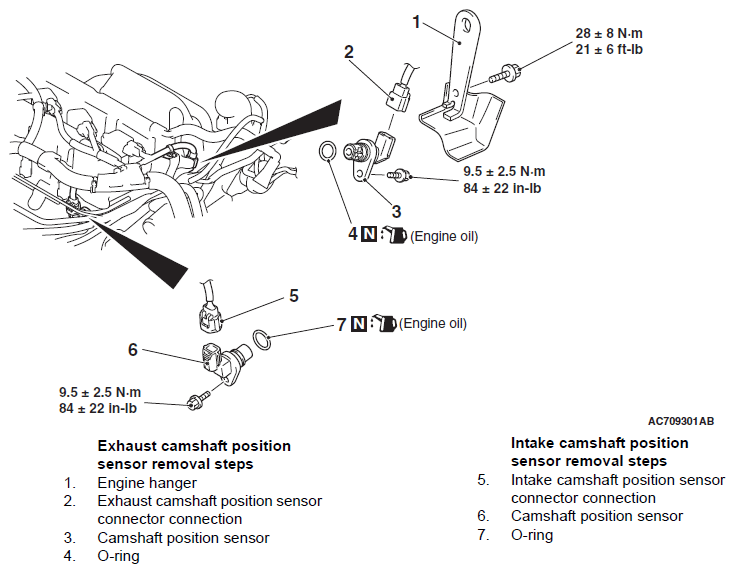

Fig 1: Camshaft Position Sensor Components With Torque Specifications
G06676766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
