Removal And Installation

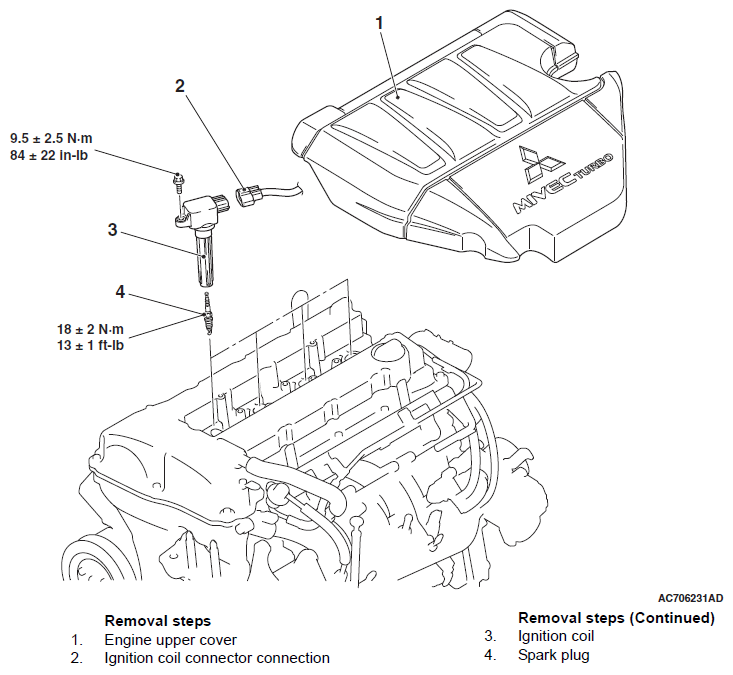

Fig 1: Ignition Coil Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
