System Diagram: Turbo

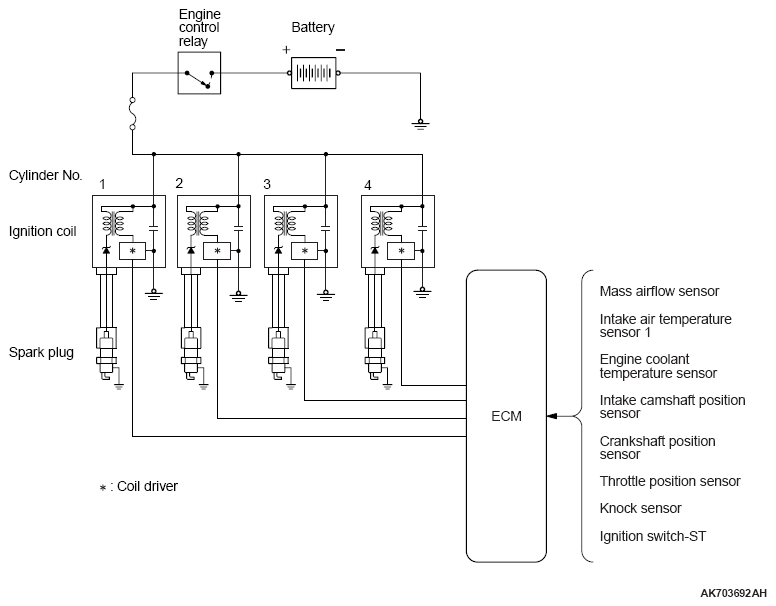

Fig 1: Ignition - System Diagram (Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
