Window Glass Installation
CAUTION:
Do not apply primer on the adhesion surface, as adhesion may be reduced.

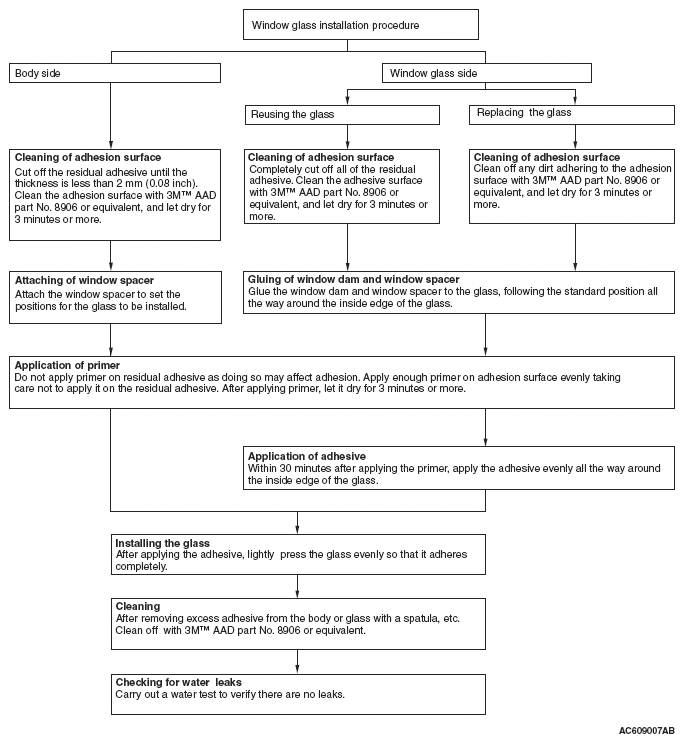

Fig 1: Window Glass Installation Procedure Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
