Removal And Installation: Notes

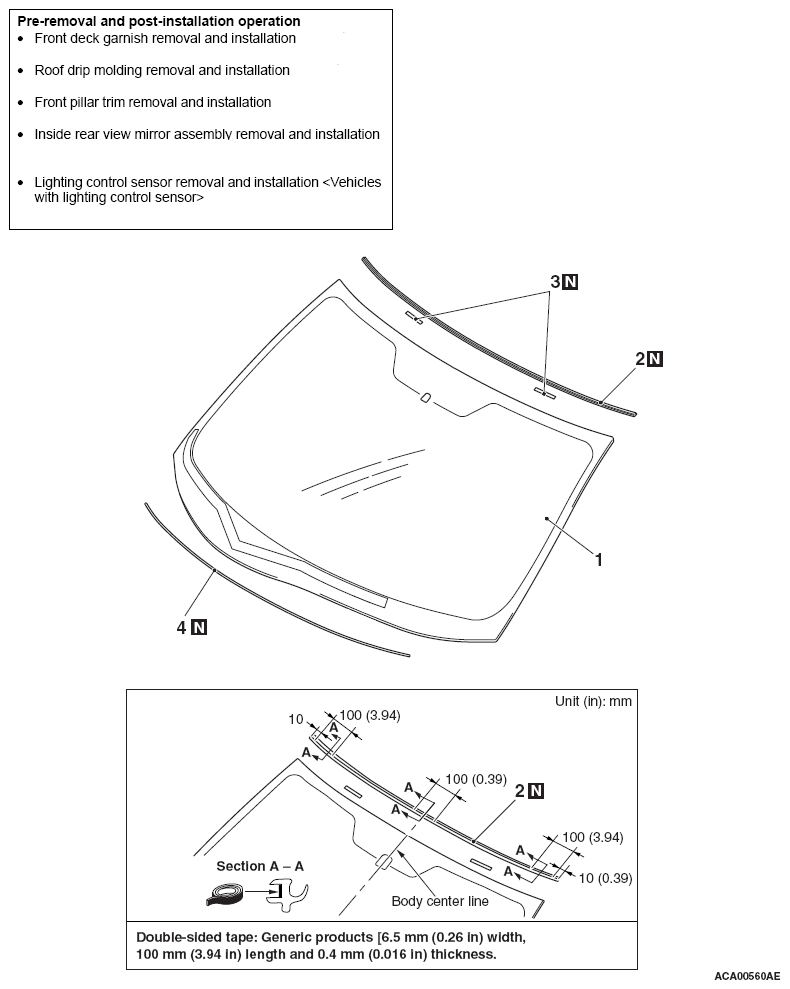

Fig 1: Identifying Windshield Double-Sided Tape And Applying Areas
G07041873Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

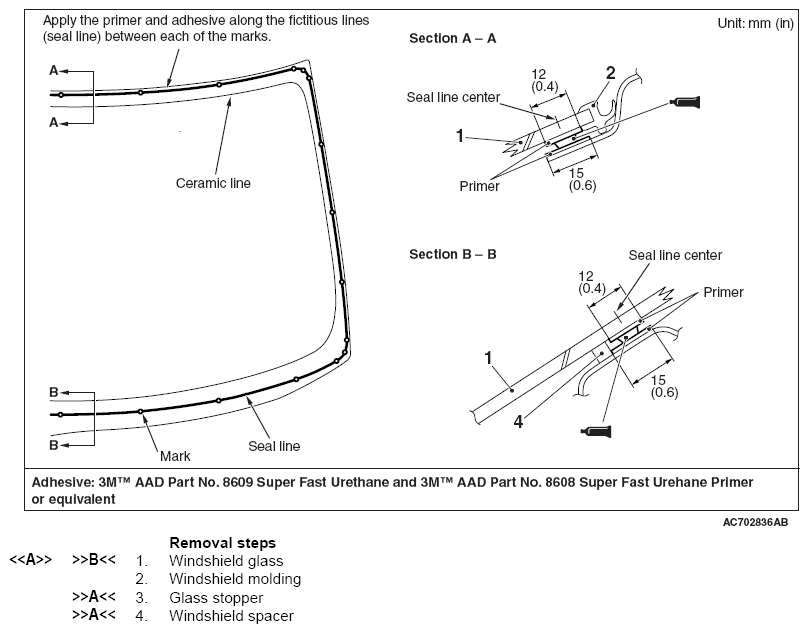

Fig 2: Identifying Windshield Primer And Adhesive Applying Areas
G07041874Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
