< 2.4L Engine >

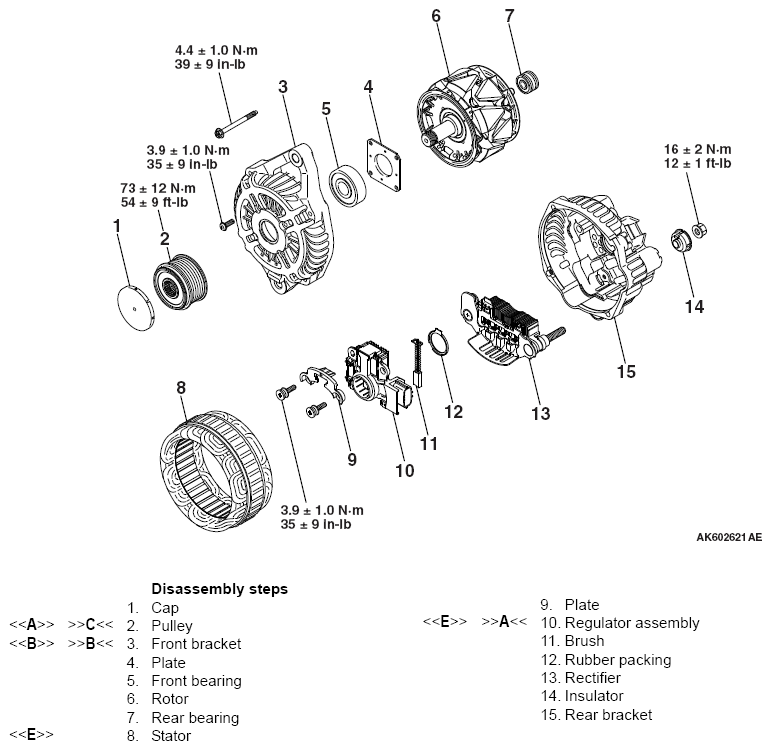

Fig 1: Disassembled View Of Generator With Torque Specifications (2.4L Engine)
G07043727Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
