Removal And Installation < 3.0L Engine >: Notes

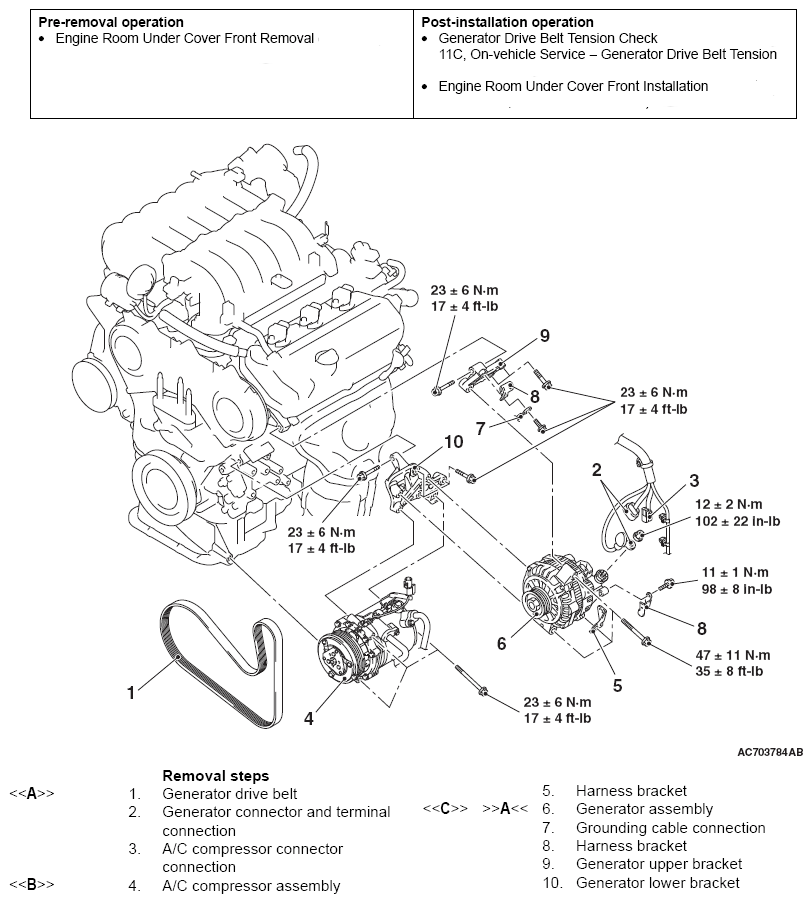

Fig 1: Exploded View Of Generator Assembly With Torque Specifications (3.0L Engine)
G07043724Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
