Disassembly And Reassembly: Notes

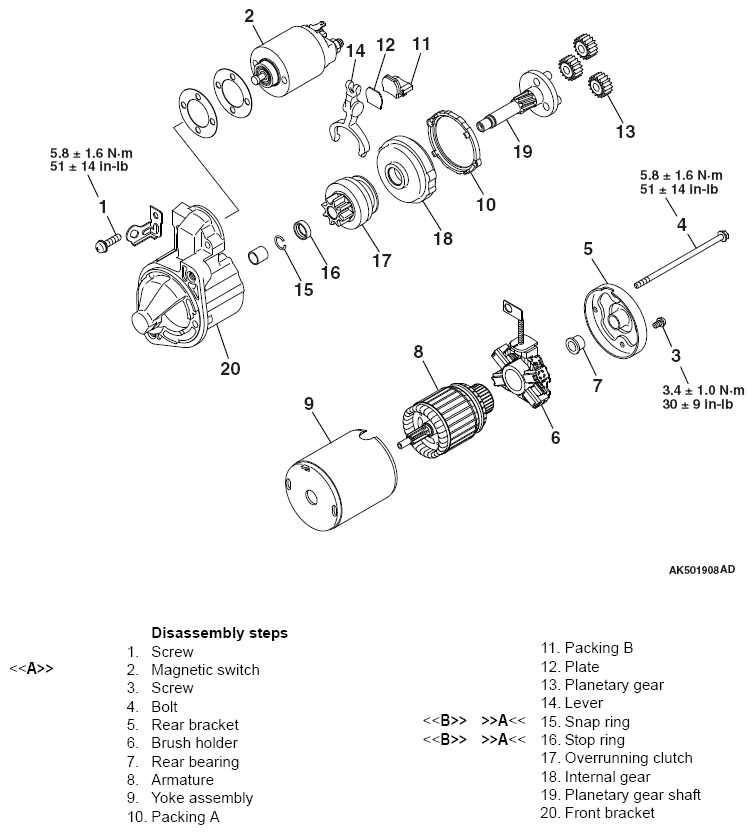

Fig 1: Disassembled View Of Starter With Torque Specifications
G07043770Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
