Removal And Installation < 3.0L Engine >: Notes

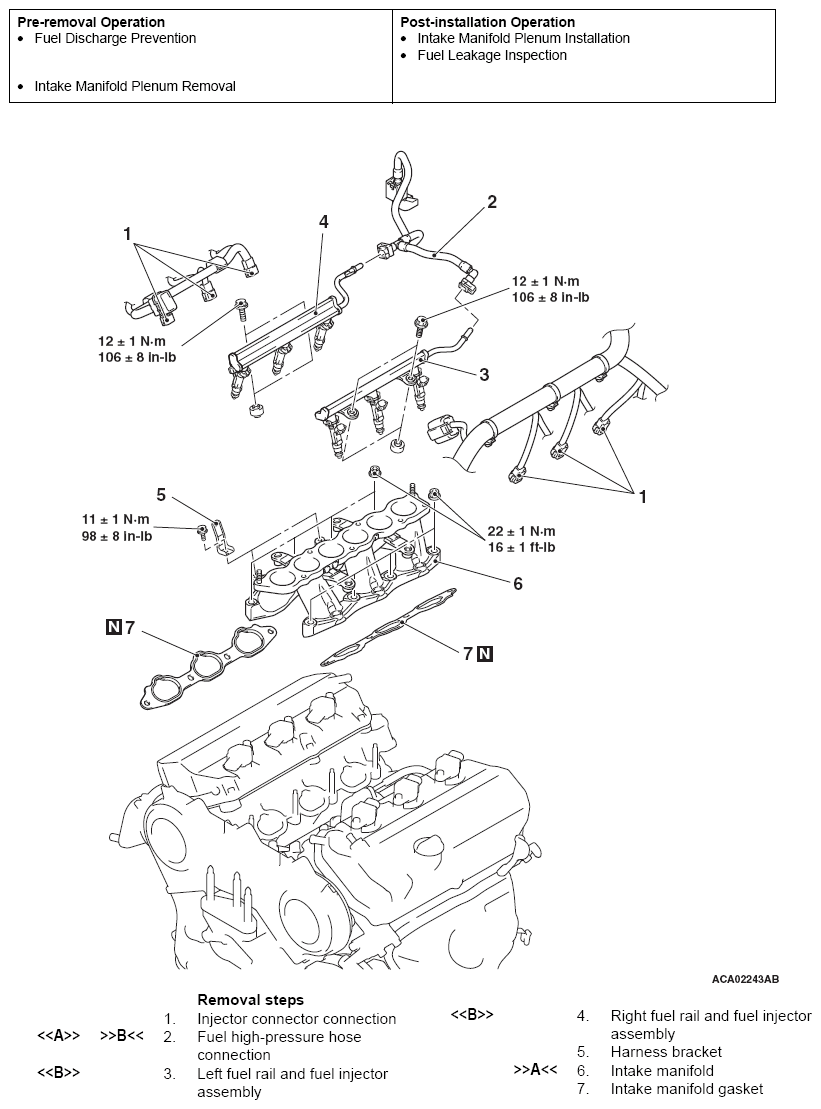

Fig 1: Removing/Installing Intake Manifold With Torque Specifications (3.0L Engine)
G07043682Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
