System Diagram

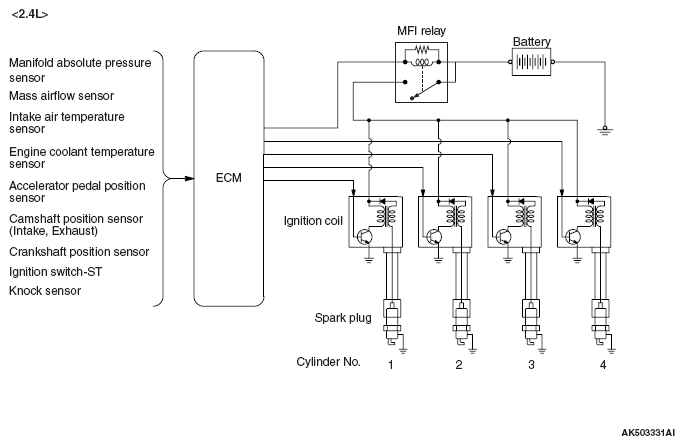

Fig 1: Ignition System Diagram - 2.4L
G05431162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

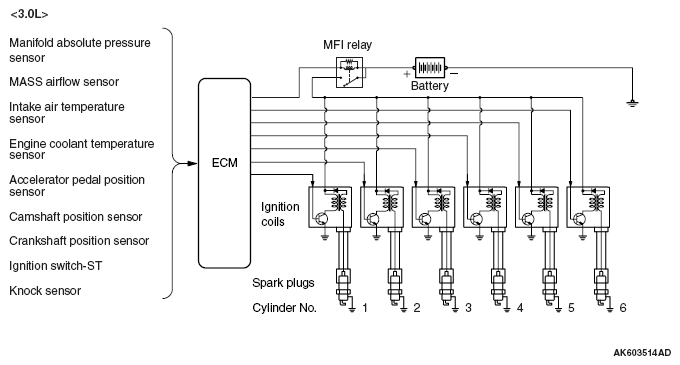

Fig 2: Ignition System Diagram - 3.0L
G05431163Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
