Spark Plug Gap Check

Check the plug gap with the wire type plug gauge. Replace it if the limit is exceeded.

Standard value:

1.0 - 1.1 mm (0.039 - 0.043 inch) < 2.4L Engine >

0.7 - 0.8 mm (0.028 - 0.031 inch) < 3.0L Engine >

Limit:

1.3 mm (0.051 inch) < 2.4L Engine >

0.95 mm (0.037 inch) < 3.0L Engine >

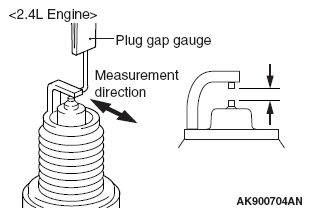

Fig 1: Checking Plug Gap With Wire Type Plug Gauge - 2.4L

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

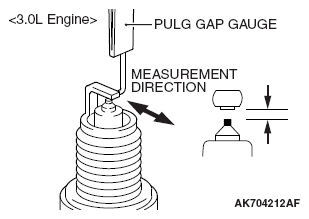

Fig 2: Checking Plug Gap With Wire Type Plug Gauge - 3.0L

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
