Vehicle Identification Code Plate

The vehicle information code plate is riveted to the face of the passenger's door sill.

VEHICLE INFORMATION CODE CHART

No. Item Example Content
1 MODEL CW6WX LSYZL2M CW6WX: Vehicle model
LSYZL2M: Model series
2 ENGINE 6B31 Engine model
3 EXT G44B Exterior code
4 TRANS AXLE W6AJA 2352 W6AJA: Transmission model 2352: Rear differential final gear ratio (a decimal point is omitted)
5 COLOR G44 Body color code
6 INT 11E Interior code
7 OPT Z06 Equipment code

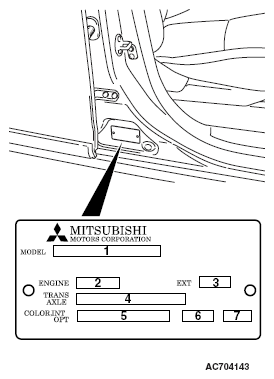

Fig 1: Identifying Vehicle Information Code Plate
G05425504Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For monotone color vehicles, the body color code shall be indicated.
