Removal And Installation: Notes

CAUTION: For the removal of the headlining, refer to - Service Precautions (refer to SERVICE PRECAUTIONS ) and Curtain Air Bag Module (refer to CURTAIN AIR BAG MODULE(S) .

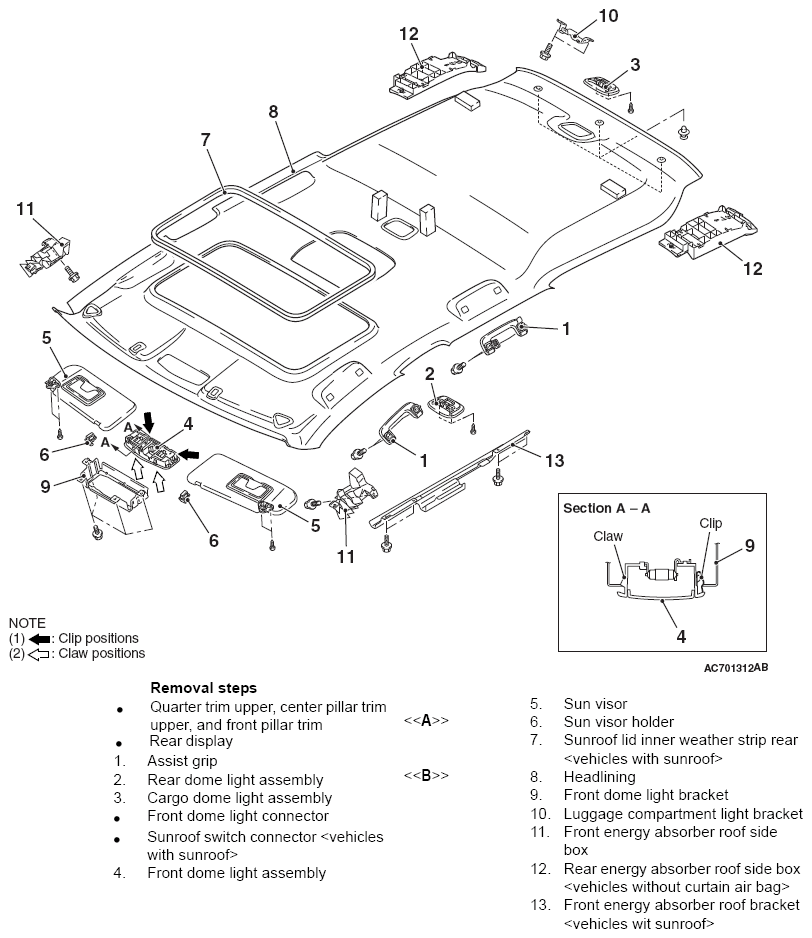

Fig 1: Identifying Headlining Removal And Installation

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
