Disassembly And Assembly

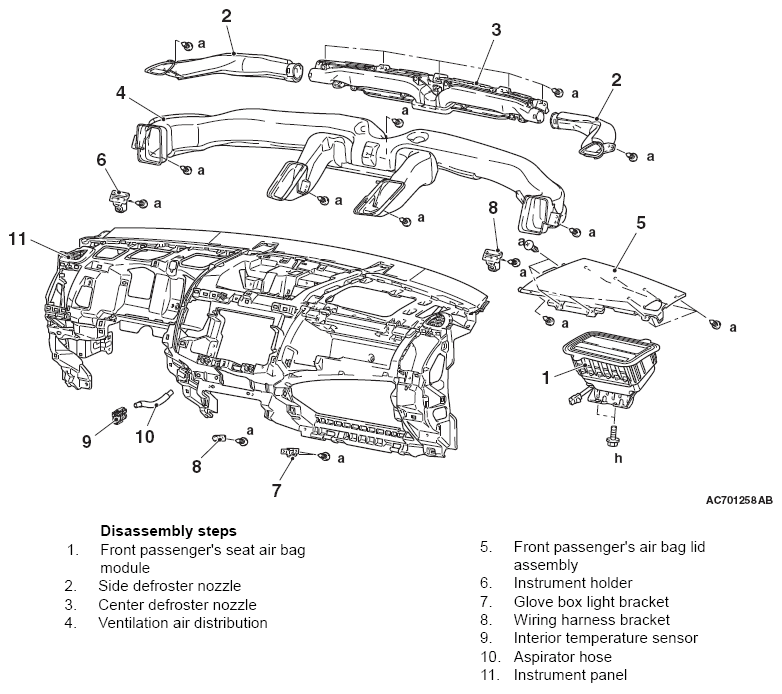

Fig 1: Identifying Instrument Panel Assembly Disassembly And Assembly
G07044457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
