Body Dimensions And Measurement Methods

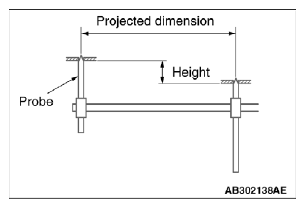

Type A (projected dimensions) is the dimension when a measurement location is projected onto the plane.
NOTE: The height indicates a distance from the assumed standard line established 100 mm (3.9in) below the lowest measurement point.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

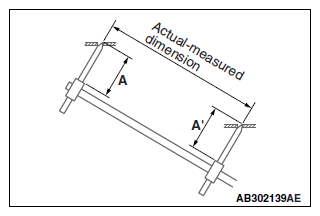

Type B (actual-measurement dimensions) is the actual distance between the measurement points. Measure using a tracking gauge or a measuring tape, etc.
NOTE:
- Make the lengths of the tracking gauge probes the same (A=A').
- Do not bend or twist the measuring tape.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

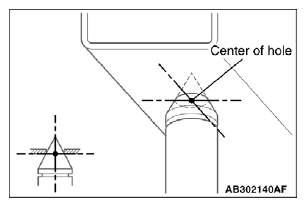

Insert the tracking gauge probes securely into the measurement holes.
When the standard dimensions in the illustration are enclosed by rectangle, this indicates that the symmetrical left and right positions have the same dimensions.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

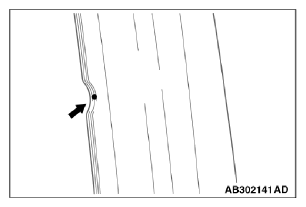

When using a notch for dimension measurement, set the measuring point at the center of the notch.
The body center points are shown for the purpose of checking the position of the left and right symmetry location.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
