Theft Protection Label Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Label area (x: for original equipment parts, y: for replacement parts)

1. Engine

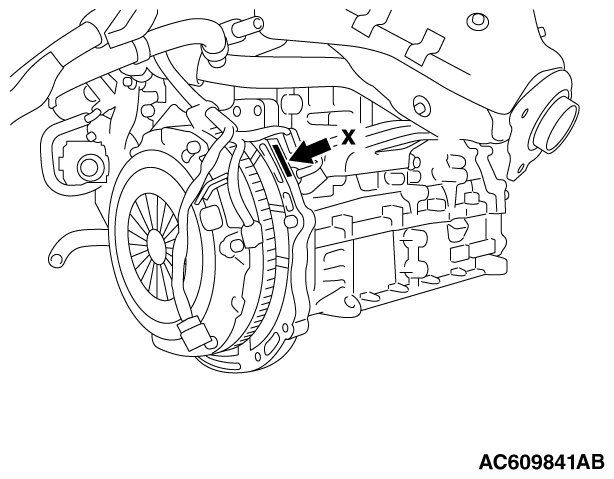

   Fig 1: Engine Theft Protection Label Component Location (1 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

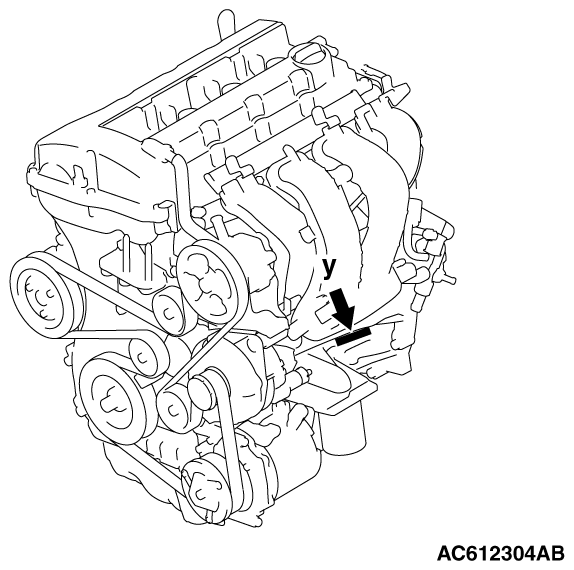

   Fig 2: Engine Theft Protection Label Component Location (2 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

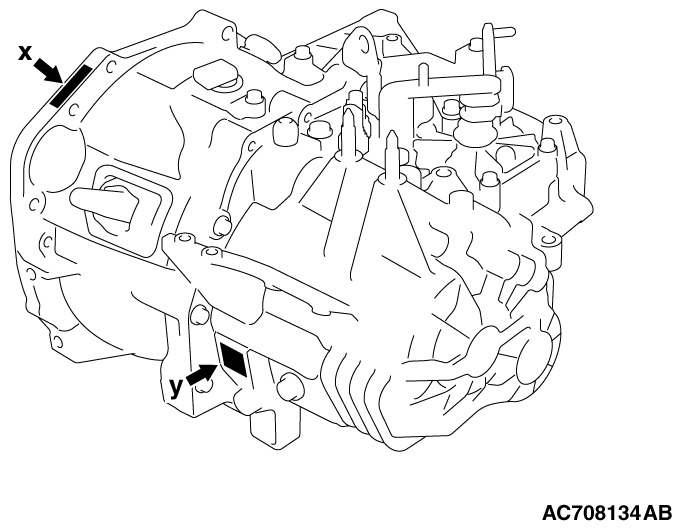

2. Manual transaxle (M/T)
   Fig 3: Manual Transaxle Theft Protection Component Locations

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

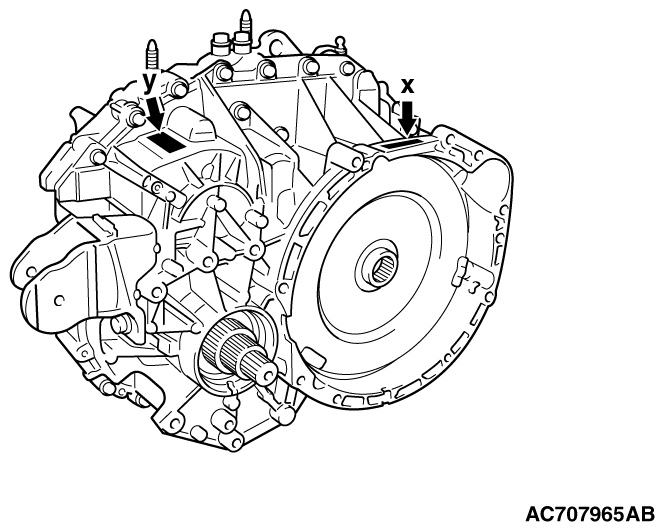

3. Twin clutch sportronic shift transmission (TC-SST)
   Fig 4: Twin Clutch Sportronic Shift Transmission Theft Protection Label Component Locations

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

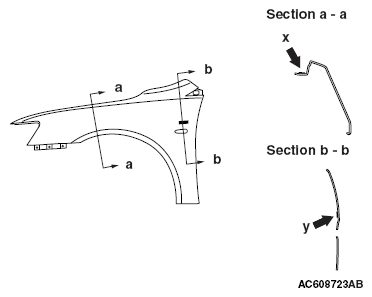

4. View A (Front fender)
   Fig 5: Front Fender Theft Protection Label Component Location

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   The illustration indicates left outer side. Right side is symmetrically opposite.

5. View B (Hood)

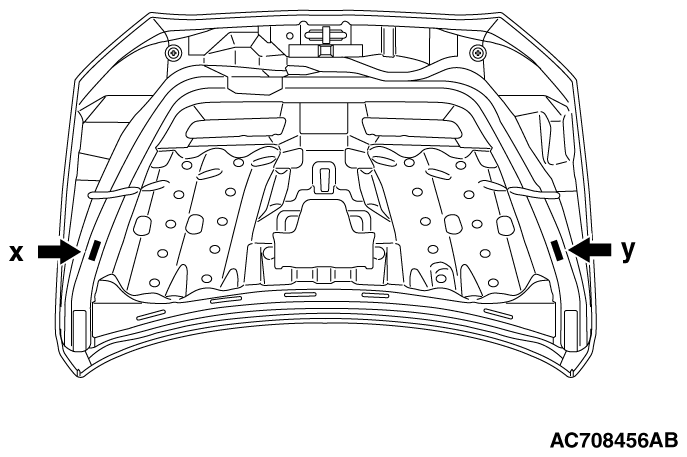

   Fig 6: Hood Panel Theft Protection Label Component Location

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Label area (x: for original equipment parts, y: for replacement parts)

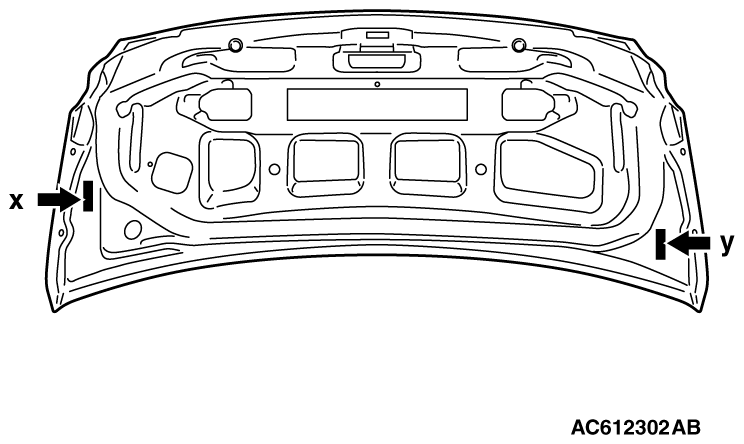

1. View C (Trunk lid)
   Fig 7: Trunk Lid Theft Protection Label Component Locations

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

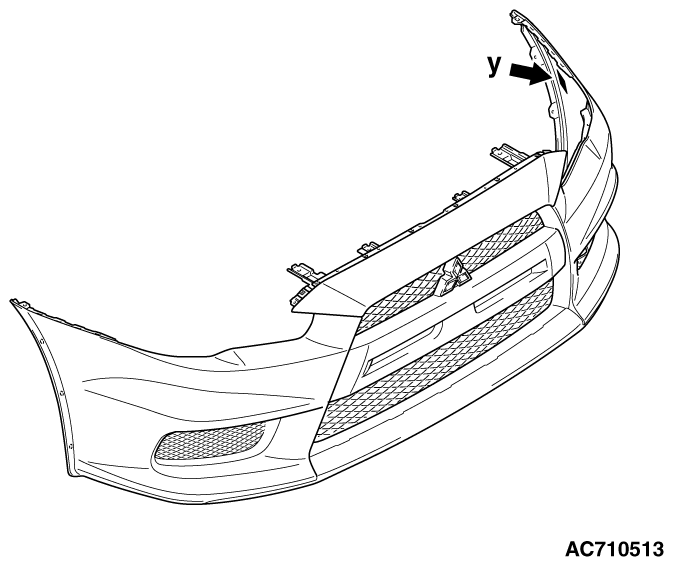

2. View D (Front bumper)

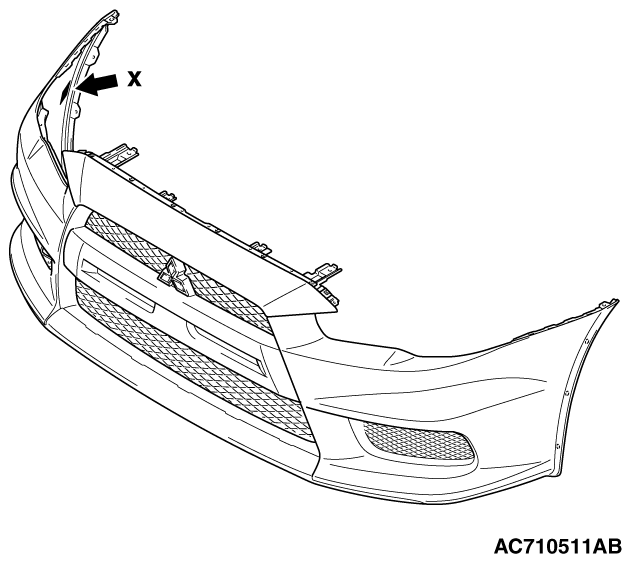

   Fig 8: Front Bumper Theft Protection Label Component Locations (1 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. View D
   Fig 9: Front Bumper Theft Protection Label Component Locations (2 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Label area (x: for original equipment parts, y: for replacement parts)

1. View E (Rear bumper)

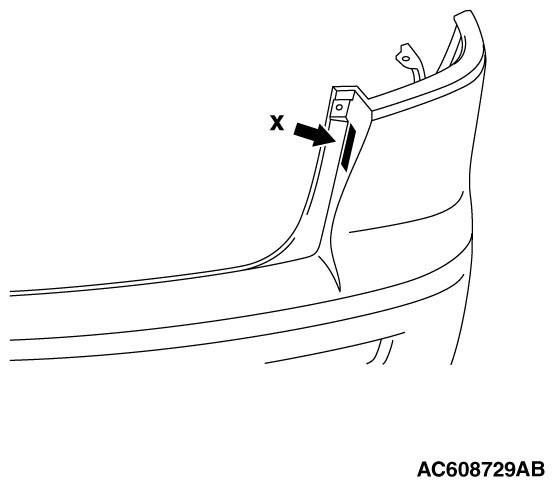

   Fig 10: Rear Bumper Theft Protection Label Component Locations (1 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. View E'

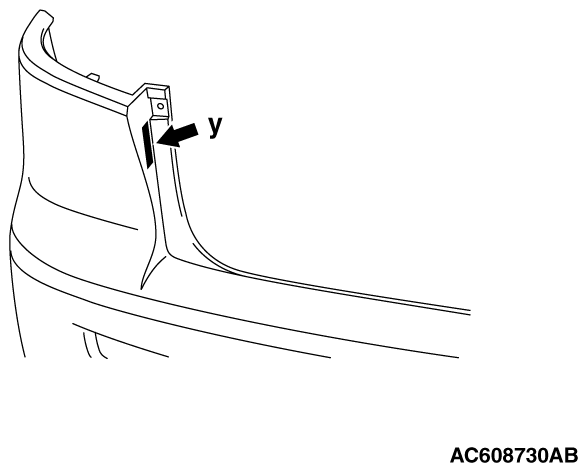

   Fig 11: Rear Bumper Theft Protection Label Component Locations (2 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. View F (Side outer panel)
   Fig 12: Side Outer Panel Theft Protection Label Component Locations (1 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   The illustration indicates left outer side. Right side is symmetrically opposite.

4. View F'
   Fig 13: Side Outer Panel Theft Protection Label Component Locations (2 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   The illustration indicates left outer side. Right side is symmetrically opposite.

5. Front Door (Both Side) View G
   Fig 14: Front Door Theft Protection Label Component Locations

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   The illustration indicates left outer side. Right side is symmetrically opposite.

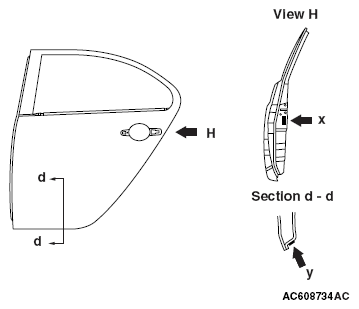

6. Rear door (both side) View H
   Fig 15: Rear Door Theft Protection Label Component Locations

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   The illustration indicates left outer side. Right side is symmetrically opposite.
