Removal And Installation

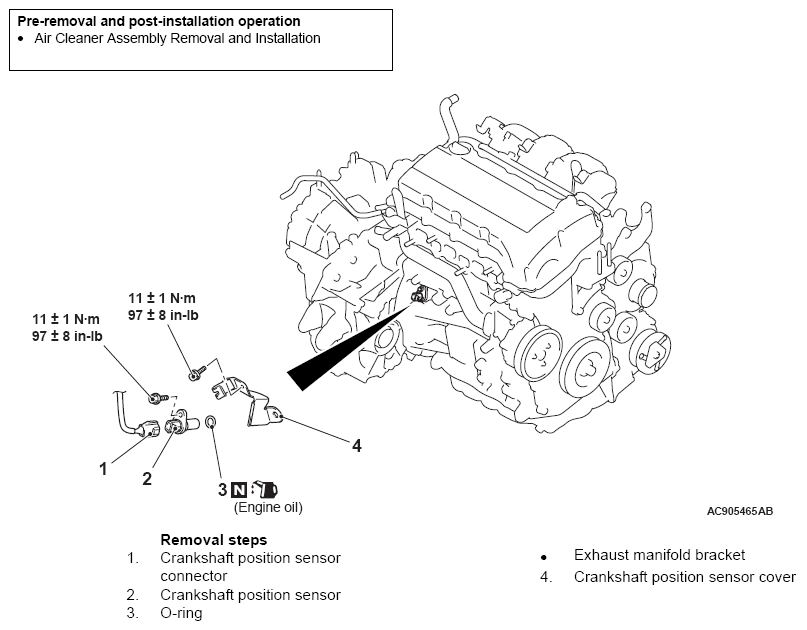

Fig 1: Crankshaft Position Sensor Components With Torque Specifications
G07047330Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
