Removal And Installation

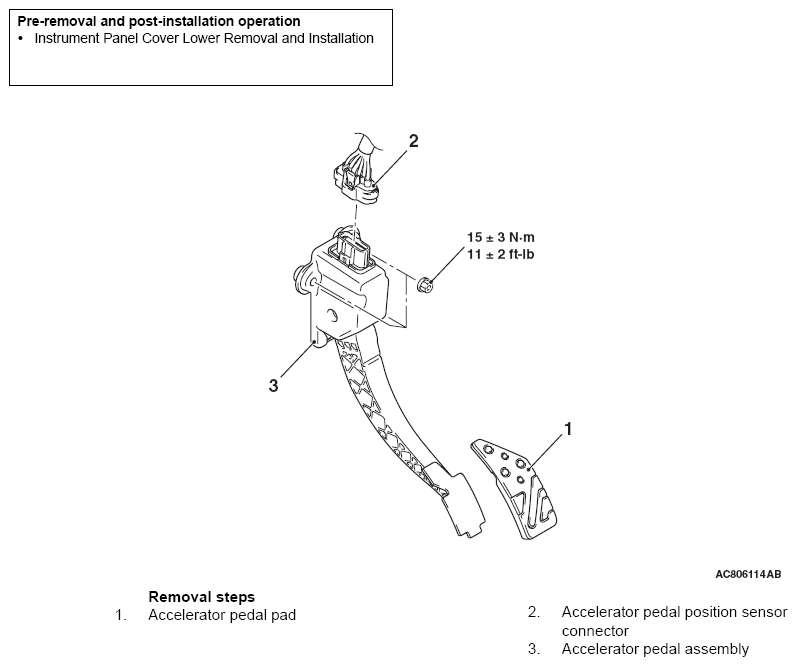

Fig 1: Removing/Installing Accelerator Pedal With Torque Specifications
G09641051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
