Construction Diagram

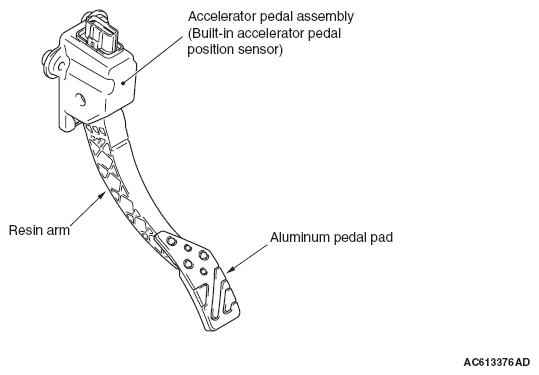

Fig 1: Identifying Accelerator Pedal Assembly, Resin Arm And Aluminum Pedal Pad
G09641047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
