Removal And Installation

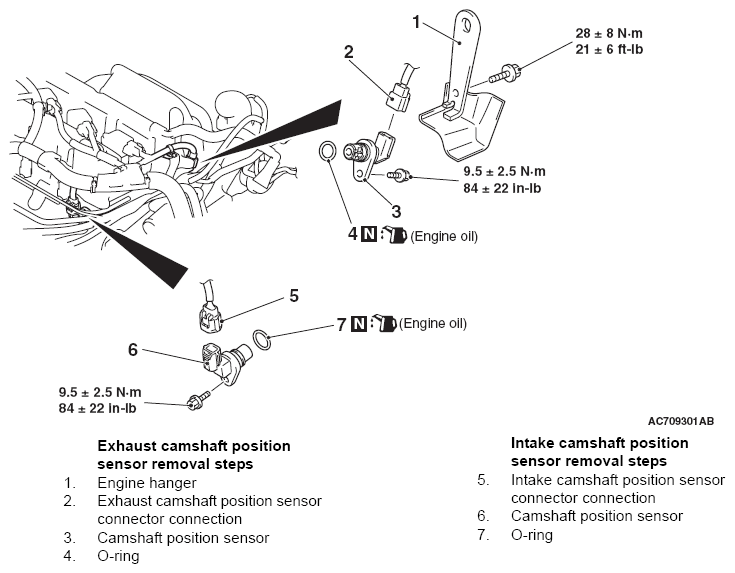

Fig 1: Removing/Installing Camshaft Position Sensor With Torque Specifications
G09641043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
