| A/C pressure sensor |
J |

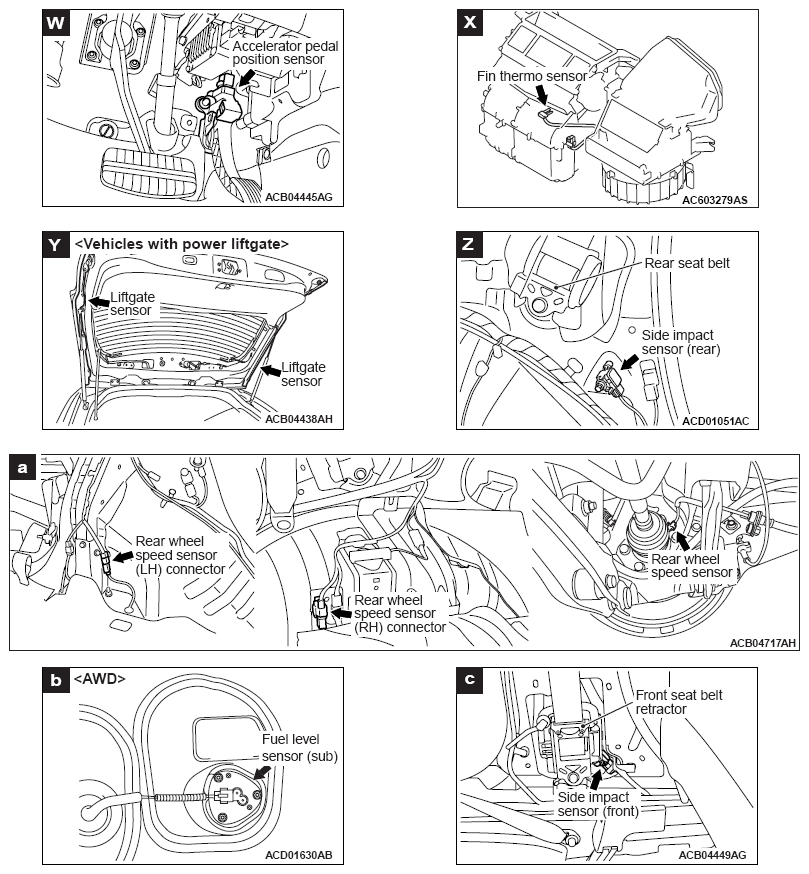

| Accelerator pedal position sensor |
W |
| Ambient air temperature sensor |
O |
| Battery current sensor < 2.4L engine > |
I |
| Brake booster vacuum sensor < 2.4L Engine > |
H |
| Camshaft position sensor |
B |
| Crankshaft position sensor |
D |
| Engine coolant temperature sensor |
E |
| Fin thermo sensor |
X |
| Front impact sensor |
Q |
| Front wheel speed sensor |
e |
| Fuel level sensor (sub) < AWD > |
b |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) |
n |
| Fuel tank differential pressure switch (incorporating fuel tank differential pressure sensor) |
n |
| Heated oxygen sensor (rear) < 2.4L Engine > |
k |
| Input shaft speed sensor < 3.0L Engine > |
S |
| Interior temperature sensor |
V |

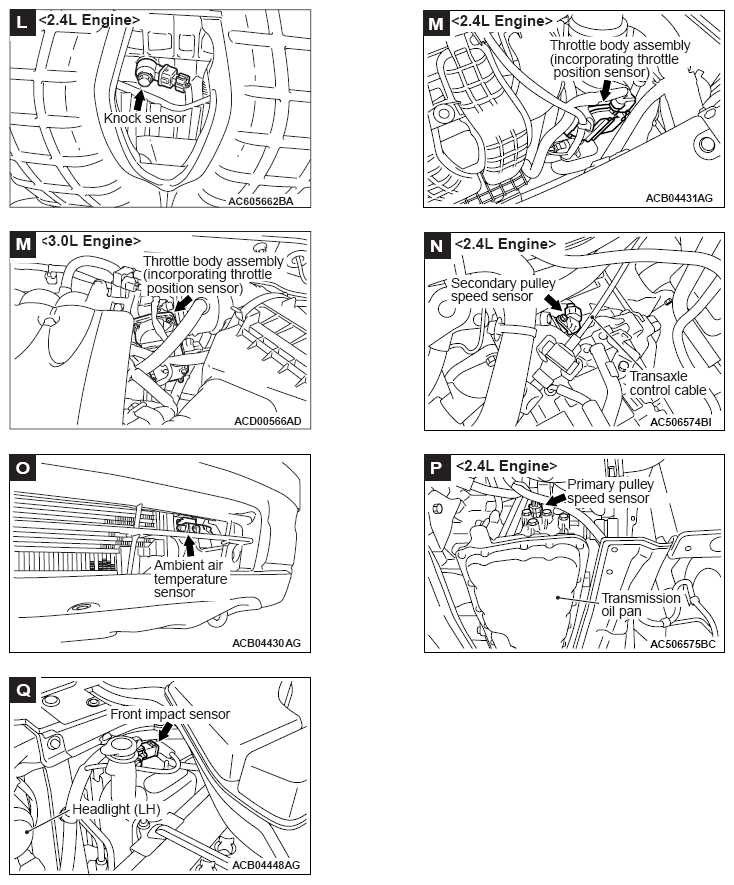

| Knock sensor < 2.4L Engine > |
L |

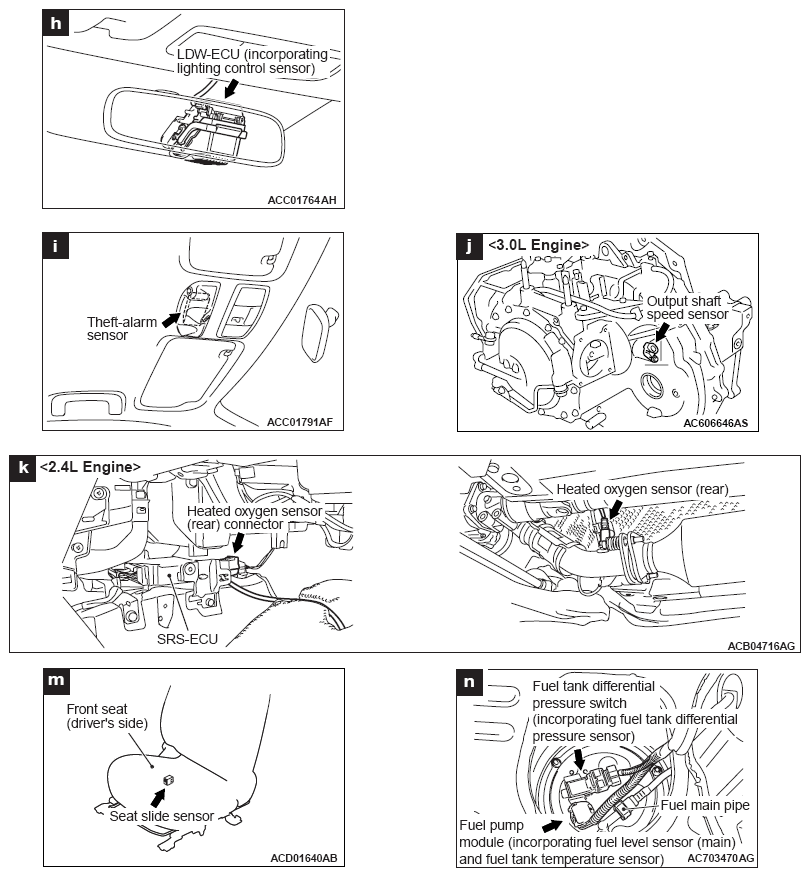

| LDW-ECU (incorporating lighting control sensor) |
h |
| Left bank heated oxygen sensor (rear) < 3.0L Engine > |
f |

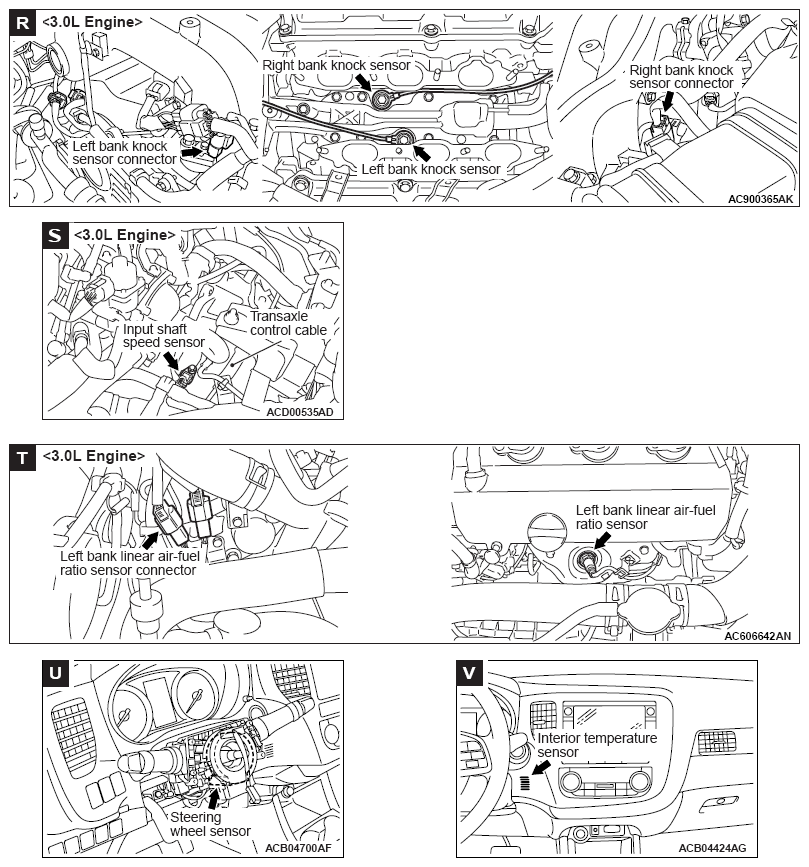

| Left bank knock sensor < 3.0L Engine > |
R |
| Left bank linear air-fuel ratio sensor < 3.0L Engine > |
T |
| Liftgate sensor < Vehicles with power liftgate > |
Y |
| Lighting control sensor < Vehicles with rain sensitive AUTO wiper without lane departure warning system > |
h |
| Linear air-fuel ratio sensor < 2.4L Engine > |
C |
| Manifold absolute pressure sensor |
K |
| Mass airflow sensor |
G |

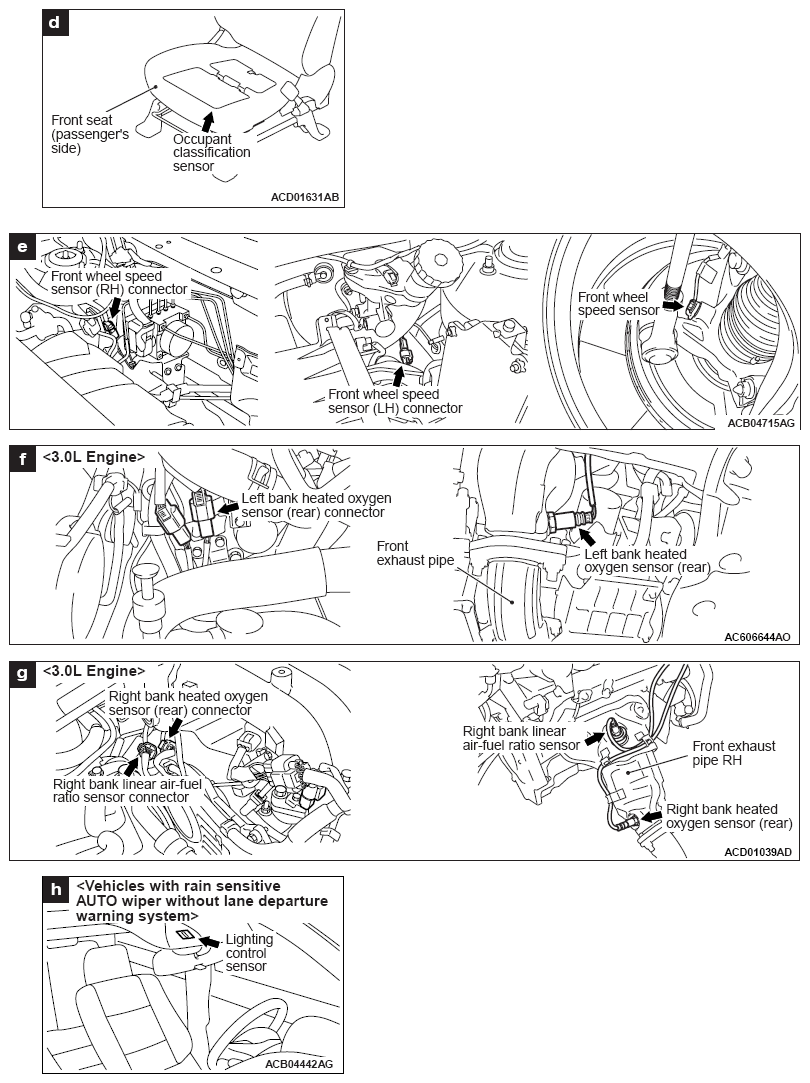

| Occupant classification sensor |
d |
| Output shaft speed sensor < 3.0L Engine > |
j |
| Primary pulley speed sensor < 2.4L Engine > |
P |
| Rear wheel speed sensor |
a |
| Right bank heated oxygen sensor (rear) < 3.0L Engine > |
g |
| Right bank knock sensor < 3.0L Engine > |
R |
| Right bank linear air-fuel ratio sensor < 3.0L Engine > |
g |
| Seat slide sensor |
m |
| Secondary pulley speed sensor < 2.4L Engine > |
N |
| Side impact sensor (front) |
c |
| Side impact sensor (rear) |
Z |
| Steering wheel sensor |
U |
| Theft-alarm sensor |
i |
| Throttle body assembly (incorporating throttle position sensor) |
M |

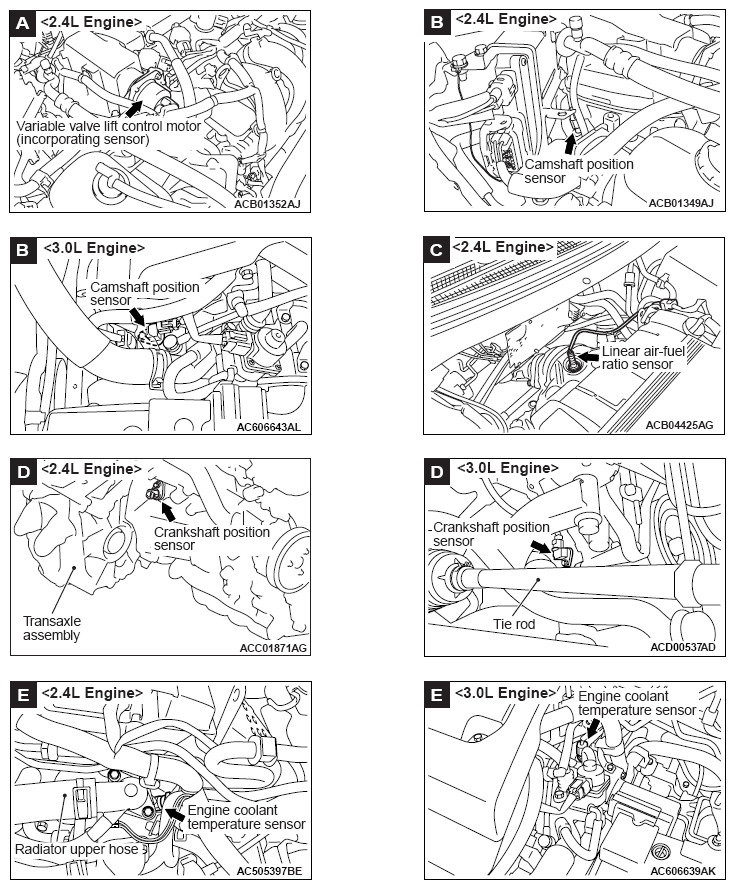

| Variable valve lift control motor (incorporating sensor) < 2.4L Engine > |
A |

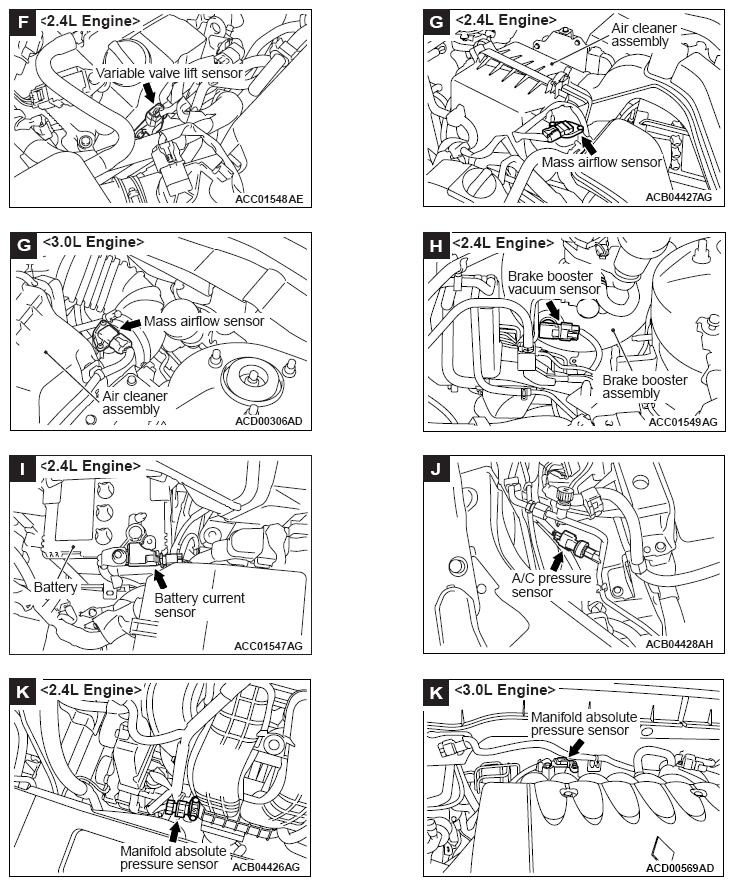

| Variable valve lift sensor < 2.4L Engine > |
F |
