REMOVAL AND INSTALLATION - 3.0L Engine: Notes

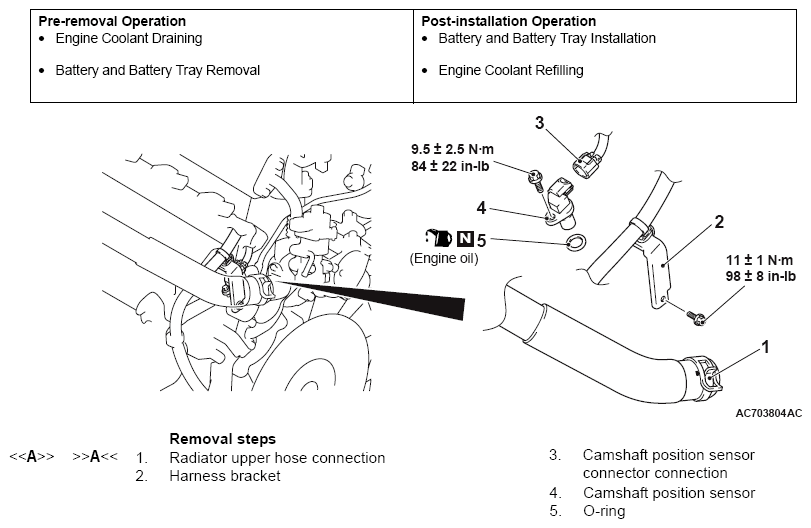

Fig 1: Removing/Installing Camshaft Position Sensor With Torque Specifications (3.0L Engine)
G09664791Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
