System Diagram

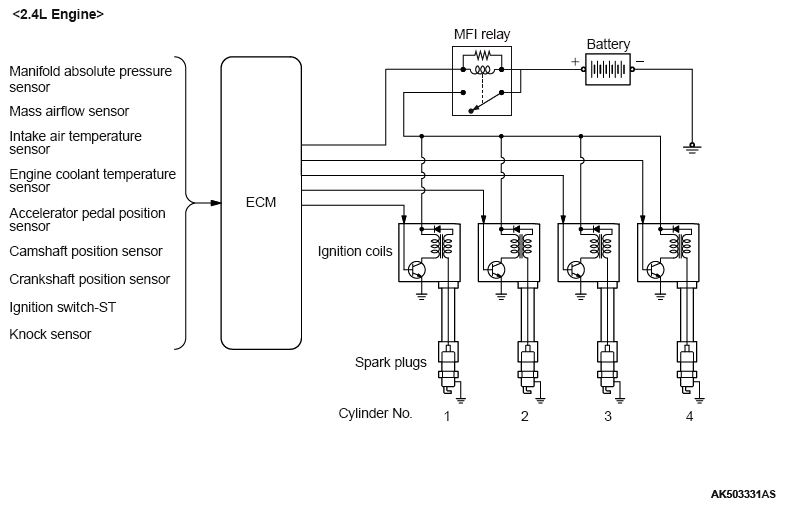

Fig 1: Ignition System Diagram (2.4L Engine)
G09664777Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

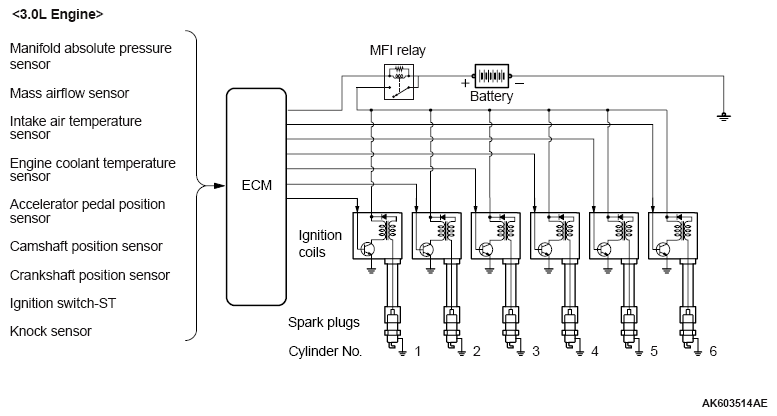

Fig 2: Ignition System Diagram (3.0L Engine)
G09664778Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
