REMOVAL AND INSTALLATION - 2.4L Engine

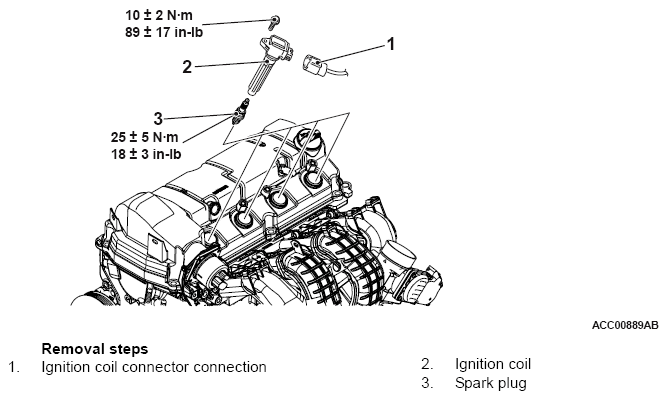

Fig 1: Removing/Installing Ignition Coil With Torque Specifications (2.4L Engine)
G09664788Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
