Control Unit

Name Symbol
A/C control panel (incorporating CPU) P
ASC-ECU A
AWC-ECU J
Column switch (incorporating column-ECU) E
Combination meter (incorporating CPU) F
Headlight control unit < Vehicles with discharge headlight > D
Engine control module B
ETACS-ECU K
Front seat assembly (RH) (incorporating occupant classification-ECU) Q
Hands free module I
KOS-ECU M
Multivision display (incorporating CPU) < Vehicles with MMCS > H
Power window main switch (incorporating CPU) S
Receiver antenna assembly (incorporating CPU) T
Receiver antenna module < Vehicles with KOS > G
Shift lever (incorporating CPU) < TC-SST > O
SRS-ECU N
Sunroof motor assembly (incorporating CPU) R
Transaxle assembly (incorporating ECU) < TC-SST > C
Wireless control module < Vehicles without KOS > G

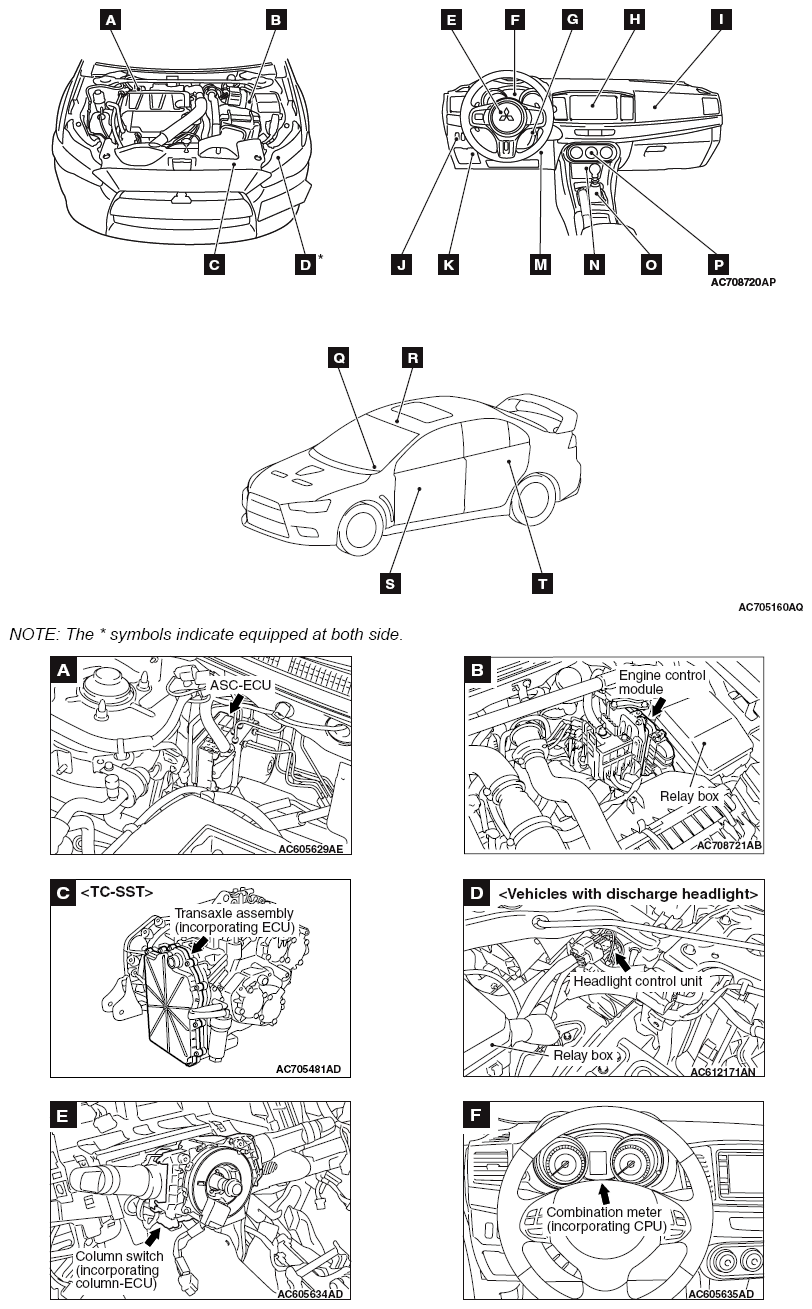

Fig 1: Control Unit Components Location (1 Of 3)
G09620613Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

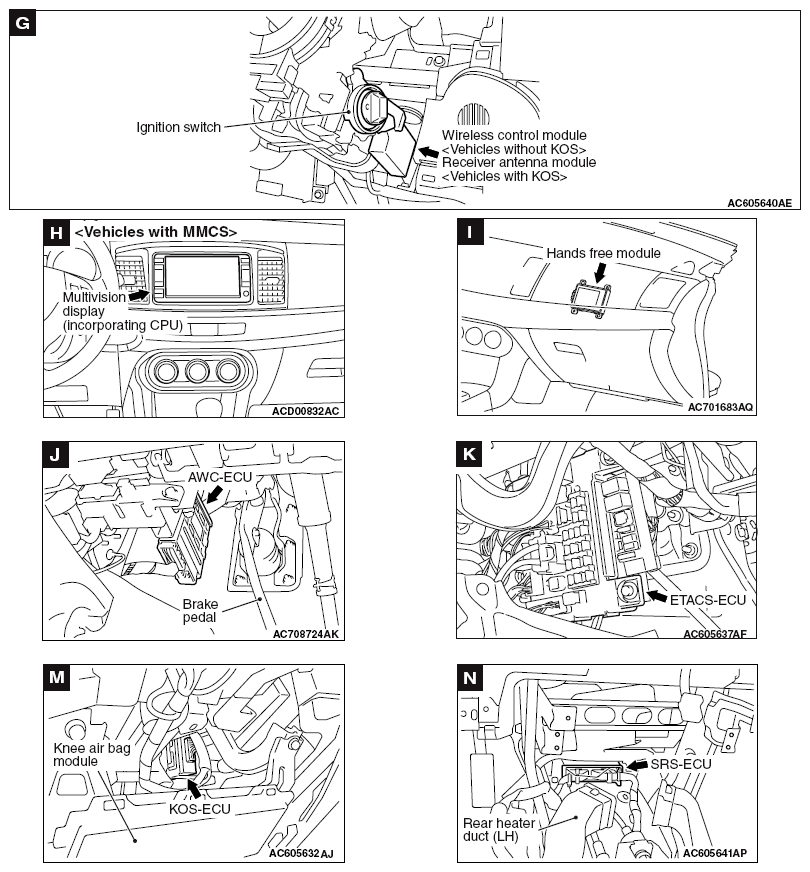

Fig 2: Control Unit Components Location (2 Of 3)
G09620614Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

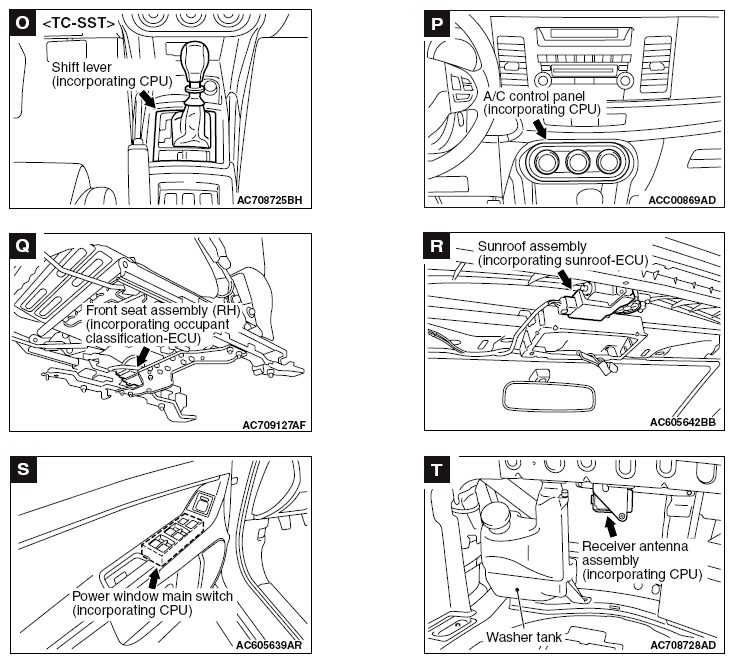

Fig 3: Control Unit Components Location (3 Of 3)
G09620615Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
