Component Locations - Lancer Evolution: Grounding

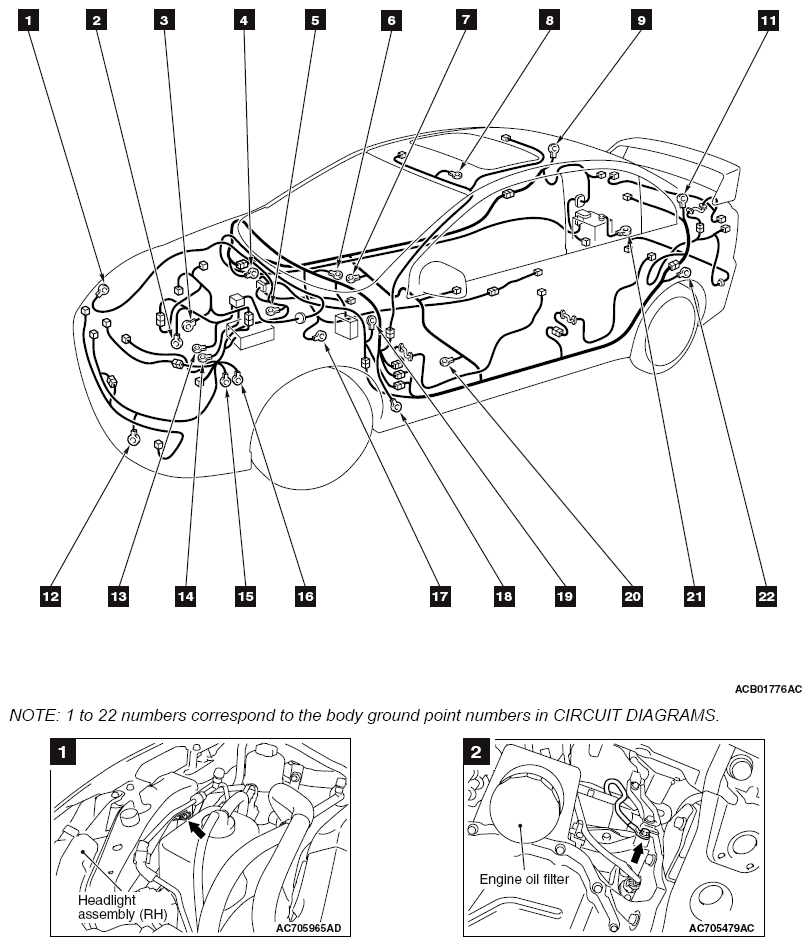

Fig 1: Grounding Components Location (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

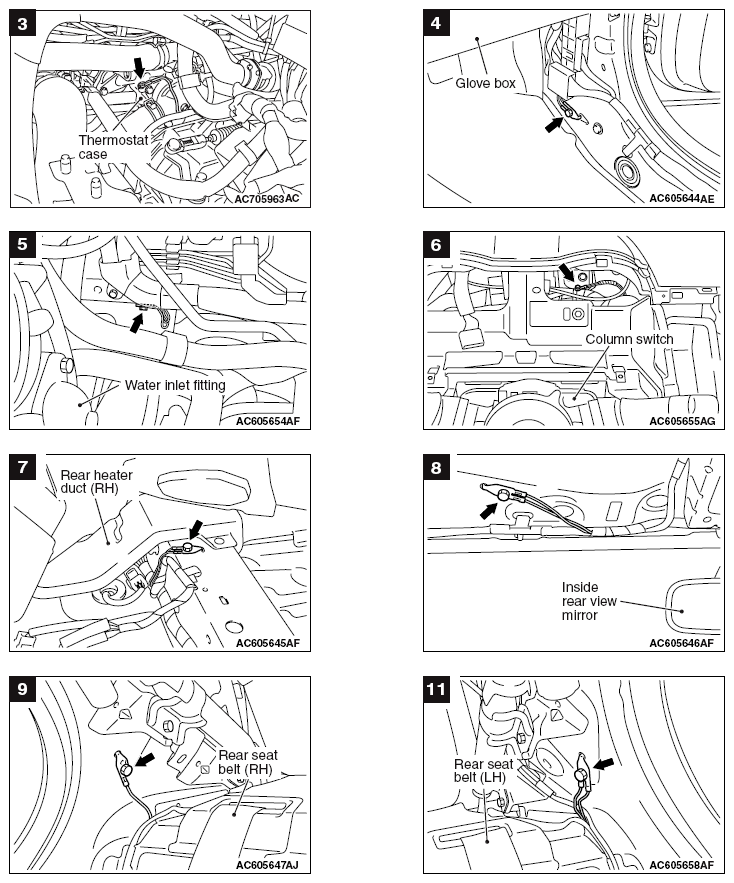

Fig 2: Grounding Components Location (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

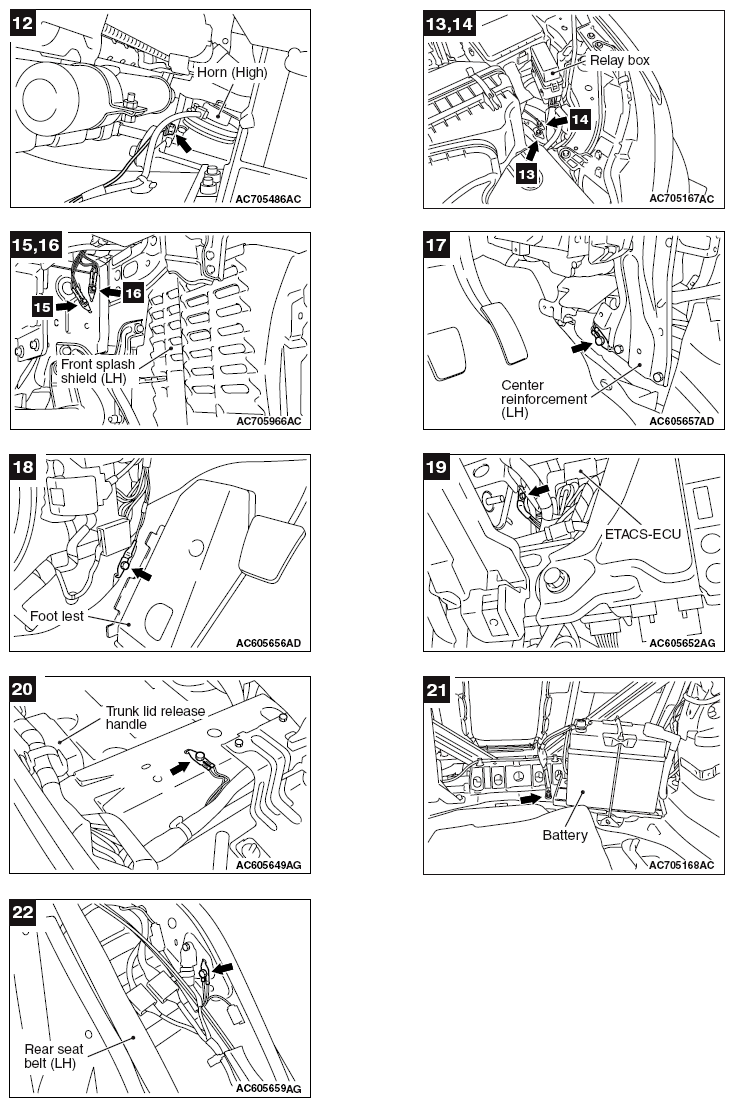

Fig 3: Grounding Components Location (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
