Vehicles With Aluminum Pedal Pad

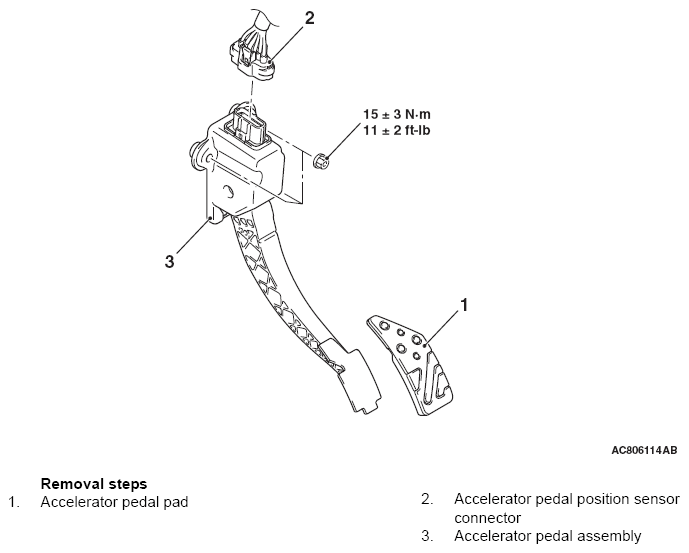

Fig 1: Removing/Installing Accelerator Pedal Components With Torque Specification - Vehicles With Aluminum Pedal Pad
G09625439Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
