System Diagram: (Turbo)

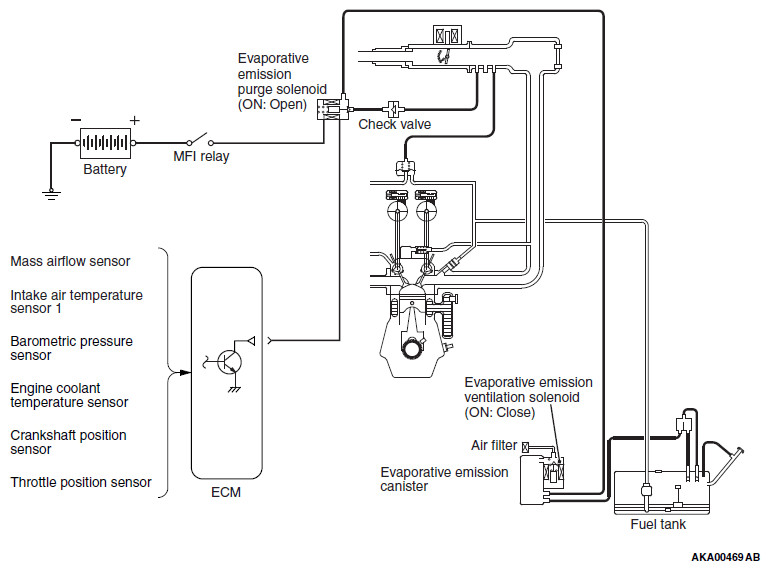

Fig 1: Evaporative Emission Control System Diagram (Turbo)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
