Vehicles For CANADA
VEHICLE GENERAL DATA & SPECIFICATIONS (CANADA)
| Item | CZ4AS | |||
|---|---|---|---|---|
| NGFZL3M | MPFZL3M | |||

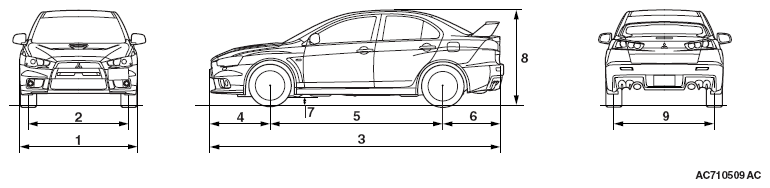

| Vehicle dimension mm (in) | Overall width | 1 | 1, 810 (71.3) | 1, 810 (71.3) |
| Tread-front | 2 | 1, 545 (60.8) | 1, 545 (60.8) | |
| Overall length | 3 | 4, 495 (177.0) | 4, 495 (177.0) | |
| Overhang-front | 4 | 910 (35.8) | 910 (35.8) | |
| Wheelbase | 5 | 2, 650 (104.3) | 2, 650 (104.3) | |
| Overhang-rear | 6 | 935 (36.8) | 935 (36.8) | |
| Ground clearance | 7 | 140 (5.5) | 140 (5.5) | |
| Overall height (unladen) | 8 | 1, 480 (58.3) | 1, 480 (58.3) | |
| Tread-rear | 9 | 1, 545 (60.8) | 1, 545 (60.8) | |
| Vehicle weight kg (lb) | Curb weight | 1, 595 (3, 516) | 1, 640 (3, 615) | |
| Gross vehicle weight rating | 2, 060 (4, 542) | 2, 060 (4, 542) | ||
| Gross axle weight rating-front | 1, 080 (2, 381) | 1, 080 (2, 381) | ||
| Gross axle weight rating-rear | 1, 050 (2, 315) | 1, 050 (2, 315) | ||
| Seating capacity | 5 | 5 | ||
| Engine | Model No. | 4B11 | 4B11 | |
| Type | DOHC MIVEC with charge air cooler turbocharger | DOHC MIVEC with charge air cooler turbocharger | ||
| Piston displacement cm3 (cu in) | 1, 998 (121.9) | 1, 998 (121.9) | ||
| Maximum output kW/r/min (HP/r/min) | 217/6, 500 (291/6, 500) | 217/6, 500 (291/6, 500) | ||
| Maximum torque N.m/r/min (ft-lb/r/min) | 407/4, 000 (300/4, 000) | 407/4, 000 (300/4, 000) | ||
| Fuel system | Fuel supply system | MFI | MFI | |
| Transaxle | Model No. | W5M6A | W6DGA | |
| Type | AWD, 5M/T | AWD, TC-SST | ||
| Turning radius m (ft) | 5.9 (19.4) | 5.9 (19.4) | ||
