How To Use The Inspection Procedures: Notes

The causes of many of the problems occurring in electric circuitry are generally the connectors, components, the ECU, and the harnesses between connectors, in that order. These inspection procedures follow this order. They first try to discover a problem with a connector or a defective component.

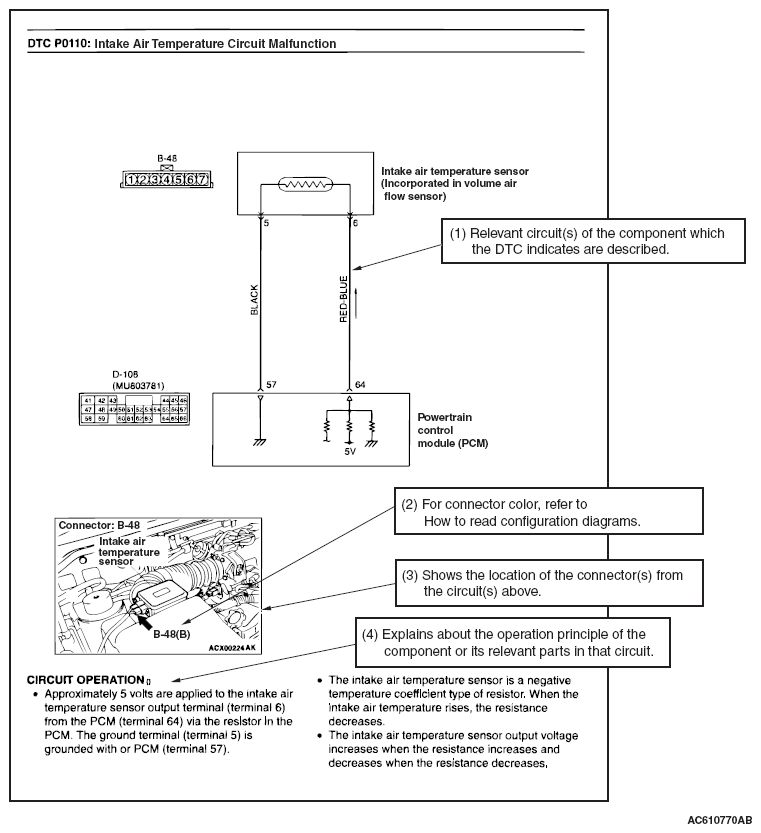

Fig 1: Identifying Intake Air Temperature Circuit Malfunction Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Setting Scan Tool MB991958 To DLC

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
