Spark Plug Insulation Resistance Check

  1. Measure the insulation resistance of the spark plug. If the insulation resistance of the spark plug is under the limited value, clean the spark plug (Refer to SPARK PLUG CLEANING ).
  2. After cleaning, measure the insulation resistance again. Replace the plug unless it is within the limited value.

    Limit: Minimum 10 MΩ

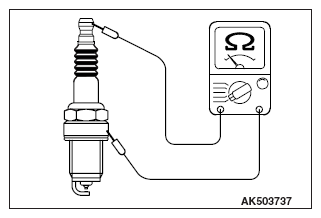

    Fig 1: Checking Spark Plug Insulation Resistance
    G09641040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
