Removal And Installation

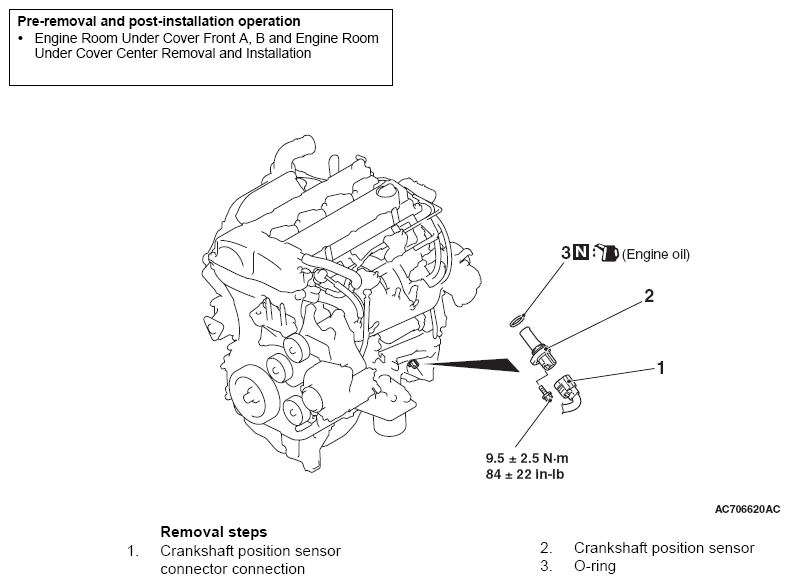

Fig 1: Removing/Installing Crankshaft Position Sensor With Torque Specifications
G09641044Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
