General Data And Specifications

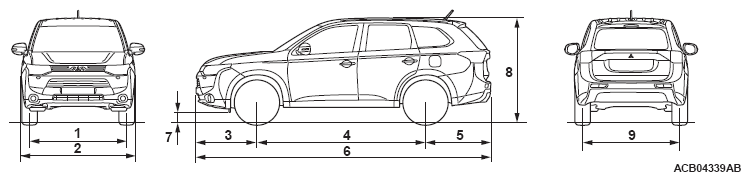

Fig 1: Identifying Vehicle Specifications
G10221553Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Item GF8W
XTMPL2M XTXPL2M
Vehicle dimension mm (in) Front track 1 1, 540 (60.6) 1, 540 (60.6)
Overall width 2 1, 810 (71.3) 1, 810 (71.3)
Front overhang 3 955 (37.6) 955 (37.6)
Wheelbase 4 2, 670 (105.1) 2, 670 (105.1)
Rear overhang 5 1, 030 (40.6) 1, 030 (40.6)
Overall length 6 4, 655 (183.3) 4, 655 (183.3)
Ground clearance (unladen) 7 215 (8.5) 215 (8.5)
Overall height (unladen) 8 1, 680 (66.1) 1, 680 (66.1)
Rear track 9 1, 540 (60.6) 1, 540 (60.6)
Vehicle weight kg (lb) Kerb weight Without full optional parts 1, 490 (3, 285) 1, 500 (3, 307)
With full optional parts 1, 541 (3, 398) 1, 559 (3, 437)
Gross vehicle weight 2, 175 (4, 795) 2, 175 (4, 795)
Gross axle weight rating-front 1, 150 (2, 535) 1, 150 (2, 535)
Gross axle weight rating-rear 1, 250 (2, 756) 1, 250 (2, 756)
Gross combination weight 2, 787 (6, 145) 2, 787 (6, 145)
Seating capacity 7 7
Engine Model code 4J12 4J12
Type SOHC MIVEC petrol engine SOHC MIVEC petrol engine
Total displacement cm3 (cu in) 2, 360 (144.0) 2, 360 (144.0)
Maximum output kW/r/min (HP/r/min) 124/6, 000 (166/6, 000) 124/6, 000 (166/6, 000)
Maximum torque N.m/r/min (ft-lb/r/min) 220/4, 200 (162/4, 200) 220/4, 200 (162/4, 200)
Fuel system Fuel supply system MFI MFI
Transaxle Model code F1CJA F1CJA
Type Front wheel drive FWD, INVECS-III CVT Front wheel drive FWD, INVECS-III CVT
Minimum turning radius m (ft) Body 5.73 (18.799) 5.73 (18.799)
Wheel 5.3 (17.39) 5.3 (17.39)
Item GF8W
XTXPZL2M XTSPL3M
Vehicle dimension mm (in) Front track 1 1, 540 (60.6) 1, 540 (60.6)
Overall width 2 1, 810 (71.3) 1, 810 (71.3)
Front overhang 3 955 (37.6) 955 (37.6)
Wheelbase 4 2, 670 (105.1) 2, 670 (105.1)
Rear overhang 5 1, 030 (40.6) 1, 030 (40.6)
Overall length 6 4, 655 (183.3) 4, 655 (183.3)
Ground clearance (unladen) 7 215 (8.5) 215 (8.5)
Overall height (unladen) 8 1, 680 (66.1) 1, 680 (66.1)
Rear track 9 1, 540 (60.6) 1, 540 (60.6)
Vehicle weight kg (lb) Kerb weight Without full optional parts 1, 575 (3, 472) 1, 460 (3, 219)
With full optional parts 1, 634 (3, 602) 1, 499 (3, 305)
Gross vehicle weight 2, 175 (4, 795) 2, 175 (4, 795)
Gross axle weight rating-front 1, 150 (2, 535) 1, 150 (2, 535)
Gross axle weight rating-rear 1, 250 (2, 756) 1, 250 (2, 756)
Gross combination weight 2, 787 (6, 145) 2, 787 (6, 145)
Seating capacity 7 5
Engine Model code 4J12 4J12
Type SOHC MIVEC petrol engine SOHC MIVEC petrol engine
Total displacement cm3 (cu in) 2, 360 (144.0) 2, 360 (144.0)
Maximum output kW/r/min (HP/r/min) 124/6, 000 (166/6, 000) 124/6, 000 (166/6, 000)
Maximum torque N.m/r/min (ft-lb/r/min) 220/4, 200 (162/4, 200) 220/4, 200 (162/4, 200)
Fuel system Fuel supply system MFI MFI
Transaxle Model code W1CJA F1CJA
Type Electronic control AWD, INVECS-III CVT Front wheel drive FWD, INVECS-III CVT
Minimum turning radius m (ft) Body 5.73 (18.799) 5.73 (18.799)
Wheel 5.3 (17.39) 5.3 (17.39)
Item GF8W
XTSPZL3M XTSPL2CS
Vehicle dimension mm (in) Front track 1 1, 540 (60.6) 1, 540 (60.6)
Overall width 2 1, 810 (71.3) 1, 810 (71.3)
Front overhang 3 955 (37.6) 955 (37.6)
Wheelbase 4 2, 670 (105.1) 2, 670 (105.1)
Rear overhang 5 1, 030 (40.6) 1, 030 (40.6)
Overall length 6 4, 655 (183.3) 4, 655 (183.3)
Ground clearance (unladen) 7 215 (8.5) 215 (8.5)
Overall height (unladen) 8 1, 680 (66.1) 1, 680 (66.1)
Rear track 9 1, 540 (60.6) 1, 540 (60.6)
Vehicle weight kg (lb) Kerb weight Without full optional parts 1, 525 (3, 362) 1, 465 (3, 230)
With full optional parts 1, 589 (3, 503) 1, 522 (3, 356)
Gross vehicle weight 2, 175 (4, 795) 2, 175 (4, 795)
Gross axle weight rating-front 1, 150 (2, 535) 1, 150 (2, 535)
Gross axle weight rating-rear 1, 250 (2, 756) 1, 250 (2, 756)
Gross combination weight 2, 787 (6, 145) 2, 787 (6, 145)
Seating capacity 5 5
Engine Model code 4J12 4J12
Type SOHC MIVEC petrol engine SOHC MIVEC petrol engine
Total displacement cm3 (cu in) 2, 360 (144.0) 2, 360 (144.0)
Maximum output kW/r/min (HP/r/min) 124/6, 000 (166/6, 000) 124/6, 000 (166/6, 000)
Maximum torque N.m/r/min (ft-lb/r/min) 220/4, 200 (162/4, 200) 220/4, 200 (162/4, 200)
Fuel system Fuel supply system MFI MFI
Transaxle Model code W1CJA F1CJA
Type Electronic control AWD, INVECS-III CVT with sport mode Front wheel drive FWD, INVECS-III CVT
Minimum turning radius m (ft) Body 5.73 (18.799) 5.73 (18.799)
Wheel 5.3 (17.39) 5.3 (17.39)
Item GF8W
XTXPL2CS
Vehicle dimension mm (in) Front track 1 1, 540 (60.6)
Overall width 2 1, 810 (71.3)
Front overhang 3 955 (37.6)
Wheelbase 4 2, 670 (105.1)
Rear overhang 5 1, 030 (40.6)
Overall length 6 4, 655 (183.3)
Ground clearance (unladen) 7 215 (8.5)
Overall height (unladen) 8 1, 680 (66.1)
Rear track 9 1, 540 (60.6)
Vehicle weight kg (lb) Kerb weight Without full optional parts 1, 500 (3, 307)
With full optional parts 1, 556 (3, 430)
Gross vehicle weight 2, 175 (4, 795)
Gross axle weight rating-front 1, 150 (2, 535)
Gross axle weight rating-rear 1, 250 (2, 756)
Gross combination weight 2, 787 (6, 145)
Seating capacity 7
Engine Model code 4J12
Type SOHC MIVEC petrol engine
Total displacement cm3 (cu in) 2, 360 (144.0)
Maximum output kW/r/min (HP/r/min) 124/6, 000 (166/6, 000)
Maximum torque N.m/r/min (ft-lb/r/min) 220/4, 200 (162/4, 200)
Fuel system Fuel supply system MFI
Transaxle Model code F1CJA
Type Front wheel drive FWD, INVECS-III CVT
Minimum turning radius m (ft) Body 5.73 (18.799)
Wheel 5.3 (17.39)
3.0L ENGINE SPECIFICATION

Item GF4W
XLDYZL2M XLXYZL3M
Vehicle dimension mm (in) Front track 1 1, 540 (60.6) 1, 540 (60.6)
Overall width 2 1, 810 (71.3) 1, 810 (71.3)
Front overhang 3 955 (37.6) 955 (37.6)
Wheelbase 4 2, 670 (105.1) 2, 670 (105.1)
Rear overhang 5 1, 030 (40.6) 1, 030 (40.6)
Overall length 6 4, 655 (183.3) 4, 655 (183.3)
Ground clearance (unladen) 7 215 (8.5) 215 (8.5)
Overall height (unladen) 8 1, 680 (66.1) 1, 680 (66.1)
Rear track 9 1, 540 (60.6) 1, 540 (60.6)
Vehicle weight kg (lb) Kerb weight Without full optional parts 1, 620 (3, 571) 1, 590 (3, 505)
With full optional parts 1, 676 (3, 695) 1, 659 (3, 658)
Gross vehicle weight 2, 270 (5, 005) 2, 270 (5, 005)
Gross axle weight rating-front 1, 150 (2, 535) 1, 150 (2, 535)
Gross axle weight rating-rear 1, 250 (2, 756) 1, 250 (2, 756)
Gross combination weight 3, 699 (8, 155) 3, 699 (8, 155)
Seating capacity 7 7
Engine Model code 6B31 6B31
Type SOHC MIVEC petrol engine SOHC MIVEC petrol engine
Total displacement cm3 (cu in) 2, 998 (182.9) 2, 998 (182.9)
Maximum output kW/r/min (HP/r/min) 164/6, 250 (220/6, 250) 164/6, 250 (220/6, 250)
Maximum torque N.m/r/min (ft-lb/r/min) 284/3, 750 (209/3, 750) 284/3, 750 (209/3, 750)
Fuel system Fuel supply system MFI MFI
Transaxle Model code W6AJA W6AJA
Type Electronic control AWD, INVECS-II 6A/T Electronic control AWD, INVECS-II 6A/T
Minimum turning radius m (ft) Body 5.73 (18.799) 5.73 (18.799)
Wheel 5.3 (17.39) 5.3 (17.39)
Item GF4W
XLDYZL3M
Vehicle dimension mm (in) Front track 1 1, 540 (60.6)
Overall width 2 1, 810 (71.3)
Front overhang 3 955 (37.6)
Wheelbase 4 2, 670 (105.1)
Rear overhang 5 1, 030 (40.6)
Overall length 6 4, 655 (183.3)
Ground clearance (unladen) 7 215 (8.5)
Overall height (unladen) 8 1, 680 (66.1)
Rear track 9 1, 540 (60.6)
Vehicle weight kg (lb) Kerb weight Without full optional parts 1, 620 (3, 571)
With full optional parts 1, 674 (3, 690)
Gross vehicle weight 2, 270 (5, 005)
Gross axle weight rating-front 1, 150 (2, 535)
Gross axle weight rating-rear 1, 250 (2, 756)
Gross combination weight 3, 699 (8, 155)
Seating capacity 7
Engine Model code 6B31
Type SOHC MIVEC petrol engine
Total displacement cm3 (cu in) 2, 998 (182.9)
Maximum output kW/r/min (HP/r/min) 164/6, 250 (220/6, 250)
Maximum torque N.m/r/min (ft-lb/r/min) 284/3, 750 (209/3, 750)
Fuel system Fuel supply system MFI
Transaxle Model code W6AJA
Type Electronic control AWD, INVECS-II 6A/T
Minimum turning radius m (ft) Body 5.73 (18.799)
Wheel 5.3 (17.39)
