Vehicle Information Code Plate

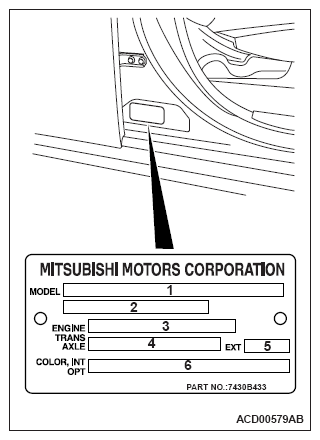

The vehicle information code plate is attached on the underside of the center pillar (passenger's).
ITEM CODE CHART
| No. | Item | Example | Content |
|---|---|---|---|
| 1 | MODEL | GF8W XTMPL2M | GF8W: Vehicle model |
| XTMPL2M: Model series | |||
| 2 | ENGINE | 4J12 | Engine model |
| 3 | EXT | A31A | Exterior code |
| 4 | TRANS AXLE | F1CJA 6466 | F1CJA: Transmission model 6466: Rear differential final gear ratio (a decimal point is omitted) |
| 5 | COLOR | A31 | Body color code |
| 6 | INT | 12X | Interior code |
| 7 | OPT | Z34 | Equipment code |
For monotone color vehicles, the body color code shall be indicated.
