Removal And Installation

Pre-removal and post-installation operation

• Bottom Cover Assembly (driver's side) Removal and Installation (Refer to INSTRUMENT PANEL ASSEMBLY ).

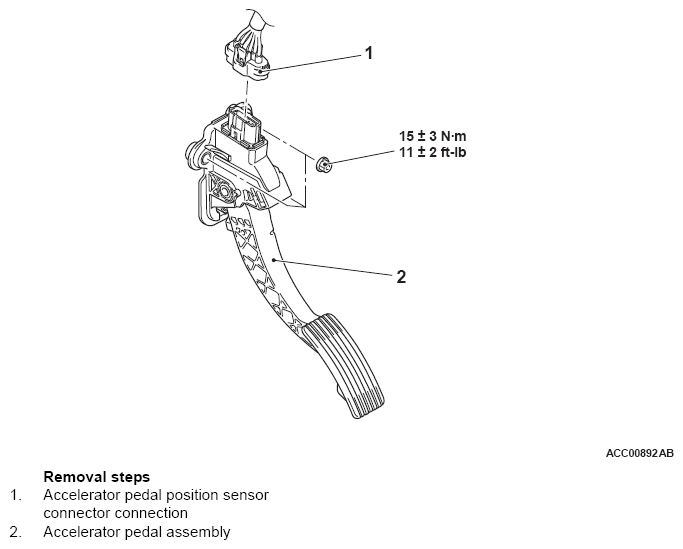

  Fig 1: Removing/Installing Accelerator Pedal Components With Torque Specification

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
