REMOVAL AND INSTALLATION (3.0 L Engine)

CAUTION:

When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to PRECAUTIONS BEFORE SERVICE - INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

Pre-removal and Post-installation Operation

Intake Manifold Removal and Installation (Refer to INTAKE MANIFOLD ).

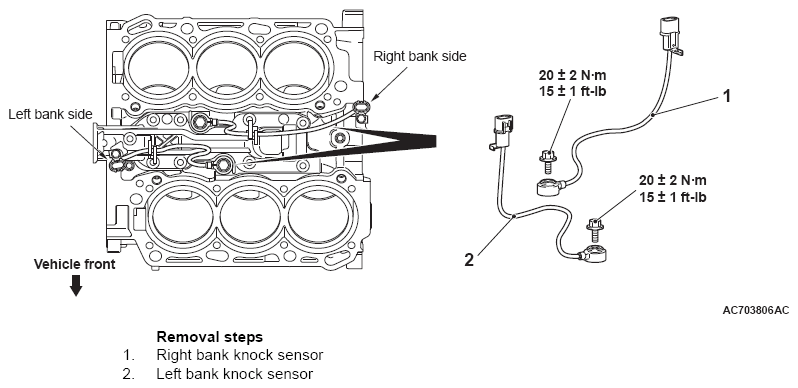

Fig 1: Removing/Installing Knock Sensor Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
